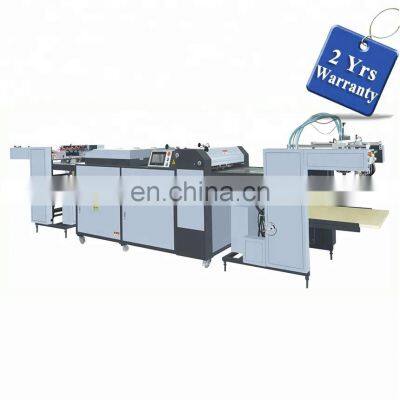

SGUV620S Maquina Para Barniz Uv de papel barnizado Auto Paper Coating Machine

Product Description

Product Description
SGUV620S Maquina Para Barniz Uv de papel barnizado Auto Paper Coating Machine
Videos
Video demonstration only for reference
Video : /watch?v=Sx4yTsIKJ2E
Product Description
Features
1, Equipped with automatic feeder and the stacker.
2, UV curing and IR drying oven online.
3, Speed control by Digital frequency converter and independent conveyor driven.
4, Larger diameter coating rollers makes the coating effect smoother & brighter.
5, Full coverage splash covers to protect from splashing.
6, Vacuum airbed to maximize the power to hold paper sheets tight on conveyor
7, UV magnetic leakage transformer with parallel capacitor design endures the voltage fluctuating impact.
8, Two level UV lamp power setting.
9, Easy access to UV lamp chamber and replacement.
10, High speed blower fan for cooling and exhaust.
11, Safety locker on all machine doors and covers.
12, Full coverage protection against UV radiation around the UV lamp chamber.
13, Low temperature control on the UV lamp chamber surface.
14, Emergency stop switches at arms length throughout the machine .
15, Interlocks design prevents against incorrect operation.
Features:

Model	SGUV-620S
Max. Sheet Size	630x760mm
Min. Sheet Size	240x290mm
Sheet Weight	150~400GSM
Speed	0~40m/min
Power	13.5Kw
UV Lamp	1pcsx6.5Kw
IR Lamp	6pcsx1.0Kw
Weight	1500kg
Dimension	5500*1180*1230mm

Detailed Images
Our Services
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1. What information should i let you know if i want to get a quotation?
A: What is your Max and Min print size in mm?
B: Material thickness and unwinding width
C: Some photos of your finished products
2. Are you a manufacturer
Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3. What about the payment term?
Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents.
4. What is the warranty?
Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5. What is your aftersale service?
Any questions will be responded within 24 hours by email, skype, phone call or whatsapp. In addtion, we have professional engineer available for overseas service.
6. What is the delivery time?
Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
