Portable 12V 24V Car AGM Lead Acid Battery Charger with LCD Display

Product Description

Product Description

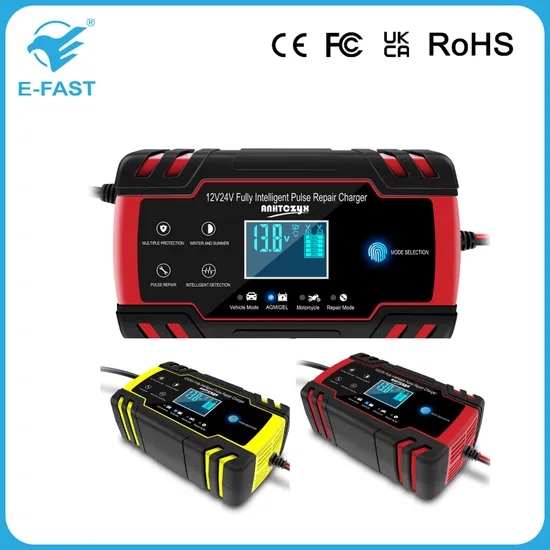

portable 12V 24V car AGM lead acid battery charger with lcd display
1.Product parameters

Brand Name:	E-FAST
Model Number:	ZYX-J30
Input voltage and current:	100-240VAC,50-60HZ
Power	140W
output voltage and current:	12V/8A; 24V4A
Battery Range	2AH-150AH
Battery Type	12V 24V STD;Lead-acid ;AGM ;GEL ;START STOP Battery
Color	Red;Yellow
Material	ABS
Dimension	170(L)*98(W)*58(H)mm
Weight	0.632kg
Applications	Car;Motorcycle;boat;Vehicle;Van;truck with12v 24v battery
Certification	CE;PsE;RoHS;FCC;UKCA
Protection	-Polarity protection -Output short protection -Short circuit protection -Overvoltage protection-Overcurrent protection-Overheating protection-Reverse connection protection
Plug	AU/EU/UK/US/JP
Efficiency	85%

2.Product Function
(1) Output short circuit and anti-reverse connection: the product has the prompt of output short circuit and reverse connection of battery (there is spark, LCD displays "ERO", and the product will not be damaged due to reverse connection or short circuit during the detection process);
(2) Battery power detection: the AC input voltage is not connected, and the battery clip is clamped at both ends of the positive and negative poles of the battery (red positive and black negative), which can display the current and voltage parameters of the battery (digital tube display data: voltage and ambient temperature cycle display, and the power is displayed in percentage form according to the detected data);
(3) Winter and summer mode: during the charging process, detect the ambient temperature, adjust the product charging state in time, and ensure the battery life and charging safety. Winter mode: LCD displays snowflakes, summer mode: LCD displays the sun;
(4) Over-temperature protection: the product has the over-temperature protection function. If the product detects that the temperature is too high, it will automatically start the over-temperature protection program. When the temperature returns to the normal value, the initial charging state will be restored;
(5) Overcharge protection: the product has the overcharge protection function to avoid the battery service life reduction caused by overcharge and enhance the reliability of charging safety (the maximum charging time is 20H by default);
(6) Charging voltage self-test: after the battery is charged, it will automatically self-test without manual switching. If it passes the self-test, it will enter the floating charge. Otherwise, it will enter the compensation charge. If the compensation charge is completed, it will enter the floating charge;
(7) LCD display status:
a: Full state: LCD display "OFF", battery grid "100%";
b: Clip disconnection mode: LCD displays "OFF" and power grid is "100%";
c: Fault mode: LCD displays "ERO" and "Flt" icons, and the buzzer rings long;
d: Charging state: LCD circularly displays voltage, current and temperature, and battery grid "charging effect display";
e: Repair mode: LCD displays "Rep" and power grid is "100%";
f: No-load detection battery: LCD displays the voltage and temperature in a cycle, and the power grid is displayed in percentage according to the battery power.
3.Product function mode selection (1) Car battery charging mode a: Charging current: Imax: 8.2A@DC13.5V. b: Charging voltage: 13.5V - intelligent control voltage (winter mode: 15.5V, summer mode: 14.6V, spring and autumn mode: 14.9V). c: battery type: lead-acid battery. d: charging maximum current Imax: 8.2A@DC13.5V e: maximum single charge duration tmax: 20H (maximum single charge capacity 85-95AH). (2) AGM battery charging mode a: Charging current: Imax: 8.2A@DC13.5V. b: Charging voltage: 13.5 V. c: battery type: AGM battery. d: charging maximum current Imax: 8.2A@DC13.5V e: maximum single charge duration tmax:20H (maximum single charge capacity 10-150AH). (3) Motorcycle charging mode a: Charging current: Imax: 1.45A@DC13.5V. b: Charging voltage: 13.5 V. c: battery type: conventional DC12V lead-acid battery. d: charging maximum current Imax: 1.45A@DC13.5V e: maximum single charge duration tmax:20H (maximum single charge capacity 2-15AH). (4) Lead-acid battery repair mode a: repair principle: positive pulse voltage repair mode. b: repair voltage: 14.9V. c: battery type: restricted to lead-acid type batteries. d: maximum repair time tmax: 20H.
4.Charging Steps
(1) detect the state of the battery before charging, the output alligator clips on both ends of the battery, red positive and black negative, with LCD display data, this step must ensure that AC power is not accessed, only AC power disconnected before operation;
(2) the charger AC input line into the plug, and then open the plug switch.
(3) mode selection and then charging.
(4) when the charger shows "FUL" or "End", indicating that the charging or repair mode has ended, disconnect the AC input, observe the battery capacity status (LCD cycle display voltage and temperature, power grid shows the current battery capacity). After confirming that it is full, disconnect the alligator clips from the battery. Detailed Photos Charging stepsChar
Packaging & Shipping Package specification: 20/30pcs/Carton;Dimension:48.5*35*27.5cm/48*41.5*34.5cm
Color Box size: 23*13*6.5cm
Delivery Detail: sample within 7 work days,15~25 days for bulk order
