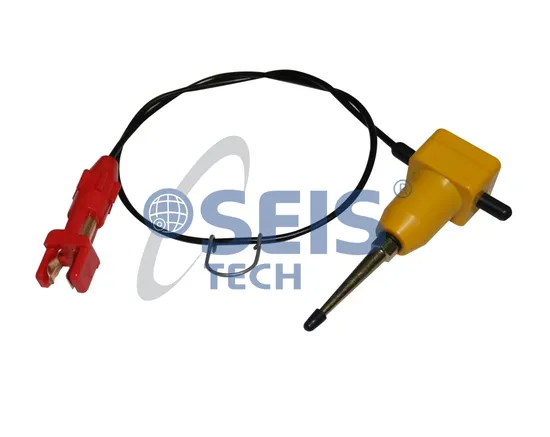

High Sensitivity Geophone 4.5Hz for S Wave and Shear Wave
| US$1.00-200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Horizontal Geophone
Vertical Lines
1
Geophone Direcction
Horizontal for S Wave
Geophone
Range From 1Hz to 100Hz
Connector
Kck, Kcl, Lck, Kooter, MP16, 408, Split Plate, Mueller
Spike
75mm Steel Soil Spike or Tripod Snowbase
Cable
4.6mm to 5.3mm, 3 Cores
Case
Waterproof Reinforced Land Case
After-sales Service
Available
Warranty
3 Years
Transport Package
Standard Export Carton
Specification
1x1, 3x1, 3x2, 6x1, 6x2
Trademark
SEIS TECH
Origin
China
HS Code
9015800090
Production Capacity
50, 000sets/Year
Packaging & Delivery
Package Size
20.00cm * 15.00cm * 10.00cm
Package Gross Weight
0.300kg
Product Description
| Type | ST-4.5B(Equivalent to SM-6/H-B 4.5Hz) |
| Natural frequency ( Hz ) | 4.5±0.5 |
| Open Circuit Damping | 0.65±10% |
| Coil resistance (ohms) | 3500±5% |
| Open circuit sensitivity (V/m/s) | 80±5% |
| Harmonic distortion ( % ) | <=0.3 |
| Moving Mass ( g ) | 11.3 |
| Max. coil excursion p-p (mm) | 4 |
| Max. tilt angle | 5º |
| Element Diameter (mm) | 25.4 |
| Element Height (mm) | 36 |
| Element Weight (g) | 86 |
| Operating Temperature( ºC ) | -40ºC to + 100ºC |
| Warranty Period | 3 years |
| All parameters specified herein are rated at a temperature 20ºC±2ºC. 3- year limited warranty on basic element exclusive of high voltage, lightening or physical abuse. | |
| Type | ST-4.5A |
| Natural frequency ( Hz ) | 4.5±0.5 |
| Frequency Response Range(Hz) | 5Hz to 1000Hz |
| Open Circuit Damping | 0.7±10% |
| Coil resistance (ohms) | 4100±5% |
| Open circuit sensitivity (V/m/s) | 100±5% |
| Harmonic distortion ( % ) | <=0.6 |
| Moving Mass ( g ) | 11.3 |
| Max. coil excursion p-p (mm) | 4 |
| Max. tilt angle | 5º |
| Element Diameter (mm) | 25.4 |
| Element Height (mm) | 36 |
| Element Weight (g) | 86 |
| Operating Temperature( ºC ) | -40ºC to + 100ºC |
| Warranty Period | 3 years |
| All parameters specified herein are rated at a temperature 20ºC±2ºC. 3- year limited warranty on basic element exclusive of high voltage, lightening or physical abuse. | |
