PE Flat Drip Pipe Making Machine Production Line Drip Irrigation Tape Extruder
Basic Info.
Model NO.
HY-374
Product Type
Extrusion Molding Machine
Feeding Mode
Multiple Feed
Assembly Structure
Integral Type Extruder
Screw
Single-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Don′t Exhaust
Automation
Automatic
Computerized
Computerized
Transport Package
Wooden Box
Specification
28*4*3m
Trademark
Huaya
Origin
Laiwu, China
HS Code
8477209000
Production Capacity
100kg/Hr
Packaging & Delivery
Package Size
250.00cm * 20.00cm * 30.00cm
Package Gross Weight
5000.000kg
Product Description
Product DescriptionDouble layers pe high pressure flat drip pipe making line
Product information
This flat dripper irrigation tape production line is our new generation of high-speed thin-wall drip irrigation tape production line. It's used to produce flat type drip irrigation tapes, which are widely used to grow field crops (such as cotton), fruits, vegetables, trees, flowers and more.
Product parameters
| Items | Specifications ( low-speed line) |
| Tape Diameter | Φ16,20mm |
| Tape Wall Thickness | 0.15-0.6mm |
| Single Screw Extruder | SJ-75/33 |
| Design production Speed | 120m/min (300mm spacing distance) |
| Central Line Height | 1000mm |
| Dripper Identifying Speed | 500 pcs/min |
| Dripper Spacing | 100mm-1000mm |
| Punching Speed | 500 pcs/min |
| Punching Method | Mechanical track puching |
| Tape Roll Length | 500m-2500m |
| Total Installed Power | 75 Kw |
| Max Extruding Capacity | 100Kg |
| Size of the Line (L×W×H) | 28m*4m*3m |
| Total Line Weight | 5800kg |

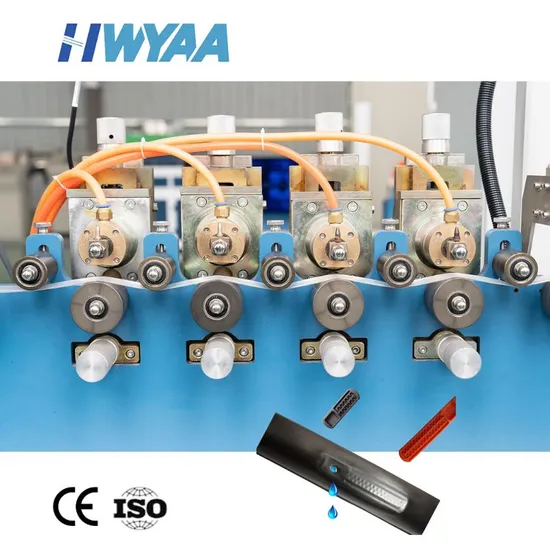

Flat emitters conveyor
| Items | Specification |
| Dripper identify | Photoelectric probe |
| Spacing Set Range | 100mm-1000mm |
| Feeding device motor | 0.55kw |
| Dripper select motor | 0.75kw Frequency Control |
| Transport motor | 0.75Kw servo motor Delta |
| Dripper transport speed | 500 pcs/min |
Extruder and pipe extruding nose
| Item | Sub-item | Specification High-speed line |
| Screw | Diameter | 75mm |
| L/D Ratio | 33/1 | |
| Revolving Speed | 90r/min | |
| Material | 38CrMoAla | |
| Brand | FIVE STAR | |
| Surface Hardness | 950Hv | |
| Barrel | Heating Zones for Barrel | 4 heating zones |
| Material | 38CrMoAla | |
| Brand | FIVE STAR | |
| Surface Hardness | 940Hv | |
| Gear Box | Material | 20CrMnTi |
| Processing Technique | Forging,carburizing,quenching,gear grinding | |
| Surface Hardness | HRC58-62 | |
| Power | Power of Main Motor | 45Kw Siemens Beide |
| Heating Power for Barrel | 16Kw | |
| Power for Cooling Fan | 4X0.24Kw | |
| Capacity | Extruder Output | 140Kg/h |
| Feeding machine | Vacuum feeding machine | 200Kg/h |
| Drying hopper | 4.8kw | |
| Hydraulic Filter | Form | Single board duplex |
| Heating method | Ceramic heating ring | |
| Heating power | 4.5kw | |
| Motor power | 2.2kw | |
| Pressure control | Pressure Sensor | |
| Die Head | Material for Die Head | 40Cr |
| Structure of Die Head | right-angle | |
| Diameter of Die Head | 250mm | |
| Heater for Die Head | 1650w |
