Large Capacity Fertilizer Making Plant Organic Fertilizer Granulator Machine

Product Description

Large Capacity Fertilizer Making Plant Organic Fertilizer Granulator Machine
Product Description:
With the rapid development of the livestock and poultry industry, a large amount of manure and sewage are generated. The harmful elements in these manures are seriously exceeded and it is difficult to treat them in the traditional returning method. The organic fertilizer production line produces fresh chicken and pig manure without any chemical ingredients, while chicken and pig have poor digestion ability and can only consume 25% of the nutrients, while the other 75% of the nutrients in the feed are with the feces. Discharge, so that the dry product contains nitrogen, phosphorus, potassium, organic matter, amino acids, proteins and other ingredients. An organic fertilizer production line can not only meet the needs of local fertilizers, but also provide the needs of the surrounding markets. Bio-organic fertilizer is widely used in various fields such as farmland, fruit trees, flowers, landscaping, lawns, and soil improvement, and has good effects.
Widely Range Raw Material Choice:
1. Agricultural waste: straw, dregs of beans, cotton dregs, rice bran,etc.
2. Animal manure: mixture of poultry litter (PL) and animal waste(AW),such as,Slaughterhouse Waste,Fish Market,Urine and dung of cattle,Pigs,Sheep,Chicken, Ducks, Geese,Goat.etc.
3.Industrial waste: wine lees, vinegar residue, manioc waste, sugar scum, furfural residue etc.
4. Home scrap: food waste, bones, the roots and leaves of vegetables, etc.
5. Sludge: the sludge of the river, the sewer, etc.
Working Principle:
Main Machines of Organic Fertilizer Production Line:
1. Crushing equipment: new semi-wet material pulverizer--vertical pulverizer and horizontal pulverizer. The internal structure has chain type and hammer type. No screen, even if the material is removed from the water, it will not be clogged.
2, mixing equipment: mixing mixer - including vertical mixer, horizontal mixer, two-axis powerful mixer, drum mixer and so on. The internal stirring structure is divided into a stirring blade type, a spiral type, and the like. Design a suitable agitation structure based on the characteristics of the material. The discharge port is designed for cylinder control and baffle control.
3. Conveying equipment: belt conveyor--mobile belt conveyor, fixed belt conveyor, etc. Belt conveyor is an economical logistics conveying equipment that is indispensable for the rhythmical flow line. It has strong conveying capacity and conveying. The distance is short, the structure is simple and easy to maintain, and the features of program control and automation can be easily implemented.
4. Fermentation turning equipment: turning machine, turning machine - including trough turning machine, walking type turning machine, chain plate turning machine, forklift turning machine, crawler turning machine for biological fermentation Throwing work, as well as fermenters.

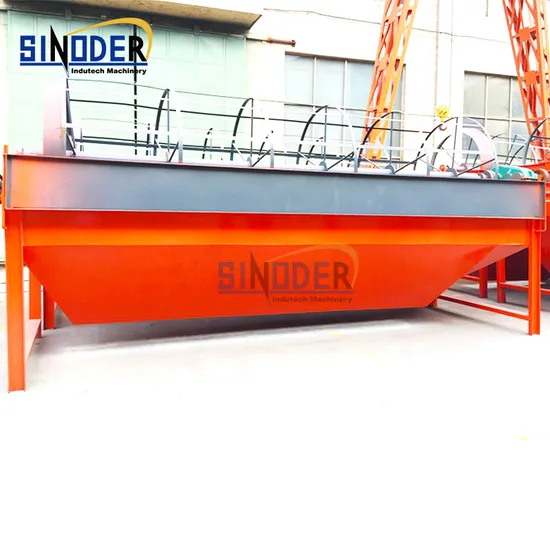

5, granulation equipment: organic fertilizer special granulator - including roll extrusion granulator, disc granulator, stir granulator, drum granulator, rounding machine, drum granulator, etc. . According to the characteristics of the raw materials, choose a suitable granulator.
6, drying and cooling equipment: rotary dryer - alias drum dryer, bio-organic fertilizer dryer, because the temperature of organic fertilizer drying can not exceed 80 °, so our dryer is dried by hot air mode. Cooler - Similar to the dryer, but with different materials and properties. The main machine of the dryer is made of boiler steel, and the main unit of the cooling machine is made of carbon steel.
7. Screening equipment: Screening machine--including drum type screen and vibrating screen. The screening machine is divided into a three-stage sieve, a second-stage sieve and the like.
8. Coating equipment: granule coating machine--The shape of the main machine is similar to that of dryer and cooler, and the internal structure is very different. The inside of the coating machine is made of stainless steel or polypropylene. The whole machine includes the powder pulverizer and oil pump for matching.
9, automatic packaging equipment: automatic metering packaging machine - including spiral and DC, single head and double head, the material is stainless steel and carbon steel, customized according to customer needs.
Packaging & Shipping:
Packing Details: in wooden packaging ,according to customer's requirements.

Delivery Details: Within 10-25working days after payment confirming.
Our Services:
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5)Taking the initiatives to eliminate the failure(s) rapidly at site;
If you want to know more about our machines,welcome to contact us freely:
