UTP Cat5e Solid Cable 305 Mtrs Fr-PVC or LSZH Communication Cable

Product Description

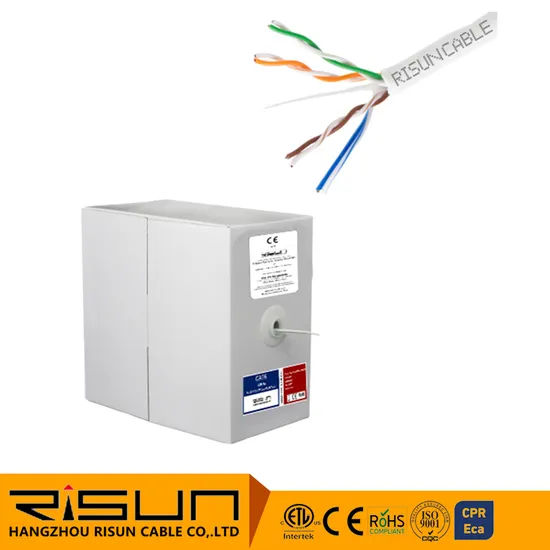

UTP Cat5e Solid Cable 305 Mtrs Fr-PVC or LSZH Communication Cable
RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.
Product Description
RISUN Cat5e UTP Cable 4 Pairs is suitable for Horizontal Cabling Systems. Used totransmit High Speed Data, Voice and Video signals both digital & analog through entireCHANNEL. With 100 MHz operational bandwidth it well exceeds the requirement of ANSI/TIA568-C.2 and ISO 11801.Features
24 AWG Solid Bare Copper
305 Mtrs. Box
Sheath Options : FR-PVC or LSZH.
Sheath Jacket Colors on Demand.
"CHANNEL" Performance Warranty.
Operates at Bandwidth Upto 100 Mhz
Cable Well Exceeds The Requirements of ANSI/TIA 568-C.2 and ISO 11801

UTP CAT5E PVC-Eca
Conductor material	Solid Bare Electrolytic Grade Copper
Conductor dimension	(24 AWG), 0.480±0.015 mm
Insulation	Polyethylene (HDPE)
Pairing	Twisted into Two core
No. of Pair	4 Pair Twisted together
Color Code: Pair #1 Pair #2 Pair #3 Pair #4	Orange-White with Orange Brown-White with Brown Blue-White with Blue Green-White with Blue
Outer Sheath	FR-PVC and LSZH
Colour of Sheath (As Per Customer Required)	GREY
Approximate OD	4.80±0.30 mm
RIP CORD	Yes
Sequential Marking	At Every Meter
Temperature Rating	-20 to +60°C
Packing	305 Mtrs. in Box

Low Frequency Electrical Parameters
Conductor Resistance (DC): 110 OHMS/1000Mtr@20 Degree C. Max.
Resistance Unbalance : 5% Max.
Mutual Capacitance : 5.6 nF/100 Mtrs Max.
Capacitance To 1khz 50±5 nF/Km(Max.)
Capacitance Unbalance Pair/Ground : 330PF/100M Max.
Propagation Delay Skew: 536nS/100M
Normal Velocity of Propagation: 69%
Impedance: 100±15%OHMS
Worst Case Cable Skew : 45nS/100M
Generally Confirming To EIA/TIA 568-C.2 and IEC/ISO 11801

Frequency (MHz)	RL≥dB	ATT≤dB/100m	NEXT≥dB	DELAY≤ns/100m	PS NEXT ≥dB	EL FEXT ≥dB/100M	PSELFEXT ≥dB/100M
1	20.0	2.1	65.3	570.00	62.3	63.8	60.8
4	23.0	4.1	56.3	552.00	53.3	51.8	48.8
8	24.5	5.8	51.8	546.73	48.8	45.7	42.7
10	25.0	6.5	50.3	545.38	47.3	43.8	40.8
16	25.0	8.2	47.2	543.00	44.2	39.7	36.7
20	25.0	9.3	45.8	542.05	42.8	37.8	38.8
25	24.3	10.4	44.3	541.20	41.3	35.8	32.8
31.25	23.6	11.7	42.9	540.44	39.9	33.9	30.9
62.5	21.5	17.0	38.4	538.55	35.4	27.9	24.9
100	20.1	22.0	35.3	537.60	32.3	23.8	20.8

Certifications

Company Profile
RISUN is Professional in manufacturing of high quality network cable/lan cable , coaxial cable, telephone wire and alarm cable. We specialize in this field for 18 years, and have already get ETL, CE, RoHS, ISO9001,CPR certification etc.
We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.
RISUN has four complete production line. 20 thousands box of UTP Cat5e cable per month.
Hot-sale Products
Our Advantages
Quality Cables with Reliable MaterialsManufacturing a quality Cables starts with using quality materials and components.
We strictly evaluate the quality and reliability of incoming materials to manage our supply chain, and our clients can be absolutely confident about our products.Double Check, Double AssuranceWe develop strict quality control standards in manufacturing to ensure consistency in processes, and we carry out a double-check before delivery.
We conduct final and complete inspection on each of Cables to ensure that the goods we deliver are perfect, whether it is a small or large order.Efficiency from the very first stepWe have the full control over our process,from raw material to cable cutting to finishes.
as all the product phases, such as design,engineering. product development and production. are made exclusive by us in our plant, which allows us to:keep full traceability of our final productassure high quality product levelcustomer-oriented productionquick reaction to market requirementsExhibition
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.
Q2. HOW LONG IS YOUR DELIVERY TIME?A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.
Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?A: Normally, 10kms per one specification and one color
Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.
Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment . WELCOME TO RISUN!!!
