Automatic Toilet Paper Making Machine Tissue Toilet Paper Slitter Rewinding Machine with Core Tube

Product Description

Qinyang Shilong CE Rewinding toilet roll tissue paper Rewinding Machine With Low Price
Products Description

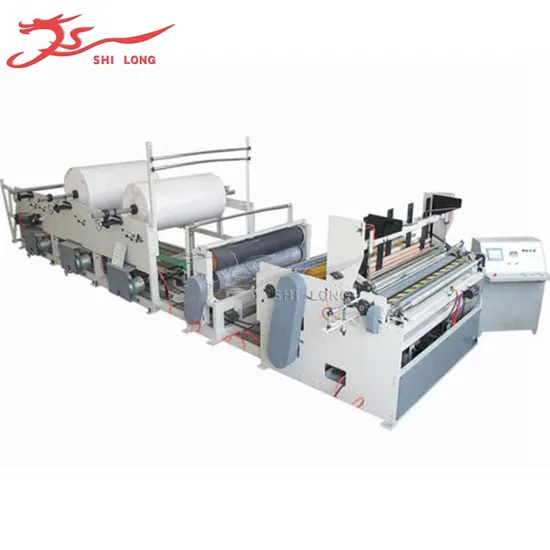

Fully Automatic Embossing Toilet Tissue Paper Roll Rewinding Machine Toilet Paper Making Machinery The toilet paper rewinding machine is through rewinding the jumbo roll, and then become jumbo paper rolls into two-layer or three-layer small toilet paper roll.Toilet paper roll rewinding processing machine, have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products.
Product Paramenters

Machine Model	1092/1575/1880/2100/2400
Paper Width(mm)	1092mm/1575mm/1880mm/2100mm/2400mm
Paper Diameter(mm)	φ1200mm(Please Specify)
Paper Core Inner Diameter	φ76mm(Please Specify)
Product Diameter	φ40mm-200mm
Paper Backing	1-4layer,general chain feed or continuously variable transmission feed paper
Punch	2-4 Knife,Spiral Cutter Line
Hole Pitch	Positioning of Belt and Chain Wheel
Control System	PLC Control,Variable Frequency Speed Control,Touch Screen Operation
Product Range	Manual,Automatic(Optional)
Drop Tube	Automtic core pulling
Non core roll paper	150-280m/min
Production Speed	Automtic
Spray,Cutting and Rewinding	Automtic
Finished product launch	380V50HZ
Power Configuration	Single Embossing,Double Embossing(Steel Roller to Wool Roller,Steel Roller)Optional
Embossing	Airbag Control,Cylinder Control,Steel to Steel Structure
Blank Holder	6200mm-7500mm*2600mm-3200mm*1750mm
Machine Weight	2900KG-3800KG

Production Process
Process of toilet paper with core
Process of toilet paper without core
Working Principle
1. Toilet Paper Processing Equipment Mainly Include: Toilet paper rewinding machine, band saw cutting machine, sealing machine, in which the toilet paper rewinding machine is the main equipment of the three equipment. 2. Rewinding The main purpose of the toilet paper rewinding machine is to process the large shaft paper into a long strip of toilet paper roll.
3. Cut the paper The long piece of toilet paper cut by the paper cutter is cut into semi-finished products of the length required by the customer.
4. Packaging Packaging can be packaged in a packaging machine or manually wrapped, and the semi-finished products of the toilet paper are packaged and sealed by a sealing machine.
Embossed Pattern The Toilet Paper Rewinding Machine can produce toilet rolls of different sizes, including solid rolls and hollow rolls, single and multilayer embossing, mre than 100 kinds of patterns and edge lines to choose from, and also can produce toilet paper roll with embossed patterns. We can customize the embossing patterns according to the needs of customers.As long as the design pictures are sent to us, we can customize them for you.We can also offer some embossed patterns for you to choose from.
Finished Paper
Multilayer high-speed rewinding,perforation neat,spray fragrance,automatic glue edge sealing,shape is very good,the cross section is very smooth
Details Images
Company Profile
1. How long it will take to get the quotation?
--We usually give reply within 24 hours after getting your inquiry. If you are urgent to get the quotation, please feel free to
call or tell us by email, then we can reply you as the first priority.
2. How long is your Warranty?
--All our products will have one year guarantee and we will continue to offer advice and spare parts after this period.
Within 1 year after receiving our machines, under right operation and non-artificial reasons, If there are any damaged parts or accessories, we will replace them by air-mail or express immediately free of charge.
After 1 year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, we are responsible to solve this problem soonest, and help customers to restore production as soon as possible.
3. Can you make paper mill design for us?
--Yes, we have professional team with rich experience of paper mill design by CAD software. You only need to tell us your open land dimension, we will make your future paper mill design.
4. What's the payment terms?
--30% initial payment when place your order, 70% balance payment before shipment.
5. How about your machine quality, we are worry about the quality.
--Jindelong is a mature brand in china, 30 years manufacturing experience of different kinds of paper machines. We strictly manufacture and manage according to IOS9001:2008 System. And can match all the CE standard or more strict standard. Our paper machine is running well in more than 20 countries.
6. Could your engineer teach and train our worker and stay in our factory for long time?
--Yes, we will send rich practiced experience engineers to your country to install and test the machine and train your workers, but you should pay them salary.
7. Your machine price is high, is there any discount?
--Our machine price is reasonable, we are factory, so the price of machine is factory price, we are looking forward to cooperate with you, please do not hesitate to contact our sales for good price.
