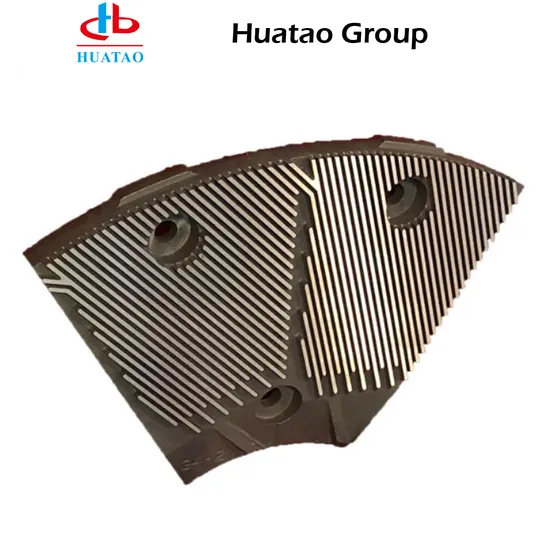

Refiner Stator and Rotor for Double Disc Refiner

Product Description

Refiner Stator And Rotor for Double Disc Refiner
Product Description
Refiner stator and rotor,Conical refiner disc, round refiner disc, DDR refiner disc,heat refiner disc, dispersing machine refiner disc, hot dispersing refiner disc, etc;
The refiner stator and rotor is the "heart" of the disc refiner and the cone refiner. In addition to the need for excellent wear resistance and impact toughness, the rationality of the tooth profile will directly affect the beating performance. "Three points for paper making, seven points for beating", to process different slurries, different indexes and the number of refiners in series should choose different tooth types. Therefore, the study of the relationship between the theory of specific blade edge load, the theory of specific surface load, rheological effect and beating performance, and the non-isolated understanding of the relationship between the various elements, is important to ensure the fiber bonding strength, filter performance, retention rate, quality of the finished paper and It is very important to save power consumption for beating.
Product Parameters
The Refiner Stator And Rotor is designed with appropriate tooth profile to achieve the established beating parameters, and has good wear resistance and impact toughness.

Product name	Refiner Stator And Rotor
Model	250-800
Material	Alloy,cast iron chrome coated,17-4PH,special S.S,high carbon S.S,High chrome alloy,etc
Diameters	300 mm-1700 mm
Hole	4-8
Installation hole distance	1000mm
Thickness	25mm-40mm
Hardness	35-65HRC
Inner diameter	700mm
Outer Diameter	800mm
Suitable Refiner Machine/Defibrator	A-ndritz,V-almet,M-etso,V-oith,Pall-mann,Zhongfoma,Dieffenbacher SWPM refiner,Sunds defibrator,etc
Applied Industry	Pulp and paper making,MDF- Medium Density Fiberboard,Fiber Cement Board Production, Corn Starch Processing,etc

Our Advantages
1.Wide range of metallurgies developed for industry needs.
2.It can be designed according to various of versions and requirements.
3.Custom designed plates are developed in shortest time.
4.Stronger plates for longer life.
5.Increased Plate Working Lifetime
6.Reduced Plate Breakage
7.Reduced Plate Plugging Problems
8.Reduced Sheet Breaks
9.Lower Shive Levels
10.Reduced Fines
11.Lower Furnish Costs
12.Increased Refining Capacity
13.Energy Savings
