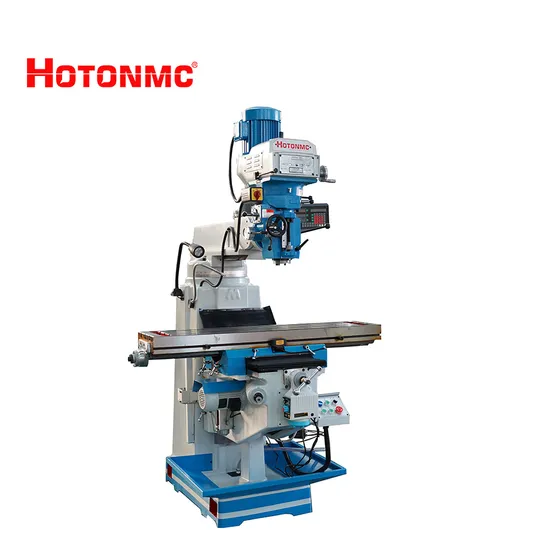

X6323 X6325 X6325D X6330 X6333 Universal Vertical Metal Turret Milling Mill Machine
| US$2,800.00-3,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6323 X6325 X6325D X6330 X6333
Type
knee type milling machine
Object
Metal
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Table Size
254X1370mm
Long Travel(mm)
950mm
Cross Travel(mm)
420mm
Vertical Travel(mm)
420mm
Motor
3.75kw
Transport Package
Plywood Case
Specification
1600kgs
Trademark
HOTON
Origin
China
HS Code
8459590000
Production Capacity
10 PCS/Month
Product Description
TURRET MILLING MACHINE FEATURES:
Feature of X6323
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
Feature of X6325:
Rectangular guide way on Y-axis and Z-axis is feature a good rigidety
The guide way on saddle is lined with TF wearable material
The worktable surface and 3 axis guide way are hardened and precision ground
Feature of X6325D:
Rectangular guide way is adopted both on Y and Z axis.
The guide way on saddle is lined with TF wearable material. Which makes the machine stably
and rigidly, also makes it beautiful and easy to operate.
5HP milling head motor and quill diameter is 100MM
Feature of X6333
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
Feature of X6330A
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
SPECIFICATIONS:
| MODEL | X6323A | X6325 | X6325D | X6333 | X6330A | |
| Table size | 230*1067 230*1246 | 254*1270 254*1370 | 254*1270 254*1370 | 330*1370 330*1500 | 305*1370 305*1500 | |
| Long travel(mm) | 650 840 | 850 950 | 850 950 | 840 1000 | 870 1000 | |
| Cross travel(mm) | 305 | 420 | 420 | 368 | 380 | |
| Vertical travel(mm) | 350 | 420 | 420 | 450 | 430 | |
| T-slot No.and size(mm) | 3x16 | |||||
| Ram travel(mm) | 315 | 470 | 470 | 500 | 500 | |
| Distance from spindle nose to table surface(mm) | 0-350 | 0-405 | 0-405 | 0-450 | 0-350 | |
| Spindle hole taper | Standard:R8 | standard:ISO40 | ||||
| Spindle travel(mm) | 127 | |||||
| Spindle speed(r.p.m) | standard: shift grade 16, 50HZ 65-4500,60HZ80-5440 | |||||
| optional:variable:60-4200 | ||||||
| Auto.quill feed | Three steps:0.04/0.08/0.15mm/revolution | |||||
| Spindle motor | 2.25kw/3hp | 2.25kw/3hp | 3.75kw/5hp | 3.75kw/5hp | 3.75kw/5hp | |
| Head swivel | 90° | |||||
| Head tilting | 45° | Fix | ||||
| Dimension of package | 1400 x1476x2030 | 1516 x1550x2080 | 1516 x1550x2080 | 1800 x2016x2180 | 1566 x1650x2080 | |
| G.W/set | 1100 | 1550 | 1590 | 2300 | 1750 | |
| Contact Us: |
| Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
