High Brightness 3.5 Inch Industrial LCD Panel Resolution 320X480 Interface RGB Color TFT LCD Module

High Brightness 3.5 Inch Industrial LCD Panel Resolution 320X480 Interface RGB Color TFT LCD Module

US$5.40
100-999 Pieces
US$5.20
1,000-2,999 Pieces
US$5.00
3,000+ Pieces

Basic Info.

Model NO.
3.5 Inch TFT LCD Display
Display Resolution
1920x1080
Type
TFT-LCD
Compatible Brand
ODM
Function
Touch Type
Color Display
Color Display
Touch Screen Type
Rtp
Display Drive Mode
Passive Matrix
Customized
Customized
Resolution
320X480
Brightness
480 CD/M2
Driving IC
St7796s
Interface
MCU/RGB/Spi/Mipi
Transport Package
Paper Box
Specification
47.72X60.26X2.3mm
Trademark
SMART
Origin
China
HS Code
8517793000
Production Capacity
500K/Month

Product Description

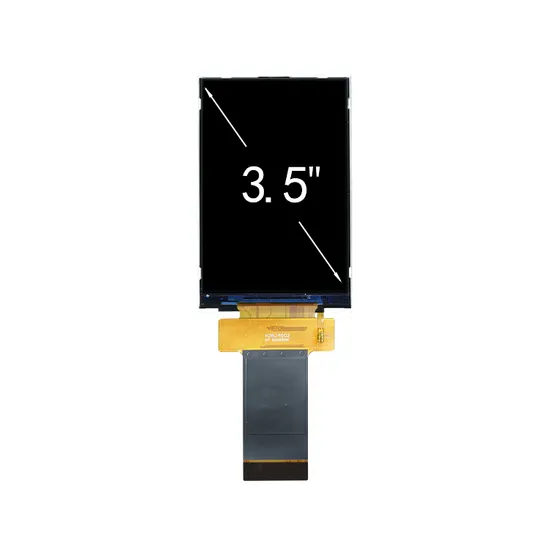

High Brightness 3.5 Inch Industrial LCD Panel Resolution 320X480 Interface RGB Color TFT LCD Module H35J4502 is a 3.5inch LCD display in Italy display module with optional resistive touch screen and capacitive touch screen control with a resolution of 320×480 pixels. This size TFT LCD monitor is portrait mode, TFT panel adopts IPS panel, Left: 80/Right: 80/ Top: 80/ Bottom: 80 degrees (typical). Optional RTP or CTP.
This H35J4502 module has built-in ST7796S controller IC, supports RGB (18bit) interface, the power supply voltage (VCC) range is 3.0V to 3.6V, the brightness is 480 nits (typ), and the contrast ratio is 800:1. The module is Ideal for industries such as beauty equipment, communication equipment, etc. The module can operate from -20°C to +70°C; its storage temperature range is -30°C to +80°C
DRAWING General Specifications
Item Contents Unit
Size 3.5 inch
LCM Dimension 54.48(W)* 84.71(H) * 2.3(T) mm
LCD Active Area 48.96 * 73.44 mm
Number Of Dots 320×480 pixel
LCD Type a-Si TFT
Viewing Direction IPS
Driver IC ST7796S
Interface Type RGB(18bit)
Operating Temperature -20ºC~ 70ºC
Storage Temperature -30ºC~ 80ºC
Backlight Type 6 LEDs
Brightness 480 cd/m2
Interface LCM PIN Definition
NO. Symbol Description
1 GND Ground
2 LEDA BACKLIGHT ANODE
3 LEDA BACKLIGHT ANODE
4 LEDK BACKLIGHT CATHODE
5 LEDK BACKLIGHT CATHODE
6 GND Ground
7 GND Ground
8 VCC POWER SUPPLY
9 IOVCC I/O POWER SUPPLY
10 RESET Reset pin
11 VSYNC Frame Synchronizing Signal
12 HSYNC Line Synchronizing Signal
13 GND Ground
14 DOTCLK Dot Clock Signa
15 GND Ground
16 DE Data Enable Signal
17-34 DB17-DB0 Data Bus
35 SDO Serial Data Output
36 SDI Serial Data Input
37 RD Read signal, rising-edge-active.
38 WR/SCL Write signal, rising-edge-trigger./Serial Clock
39 D/CX Data/Command registor selection.
40 CS Chip Select
41 TE Frame mark.
42 XR Touch Panel Right
43 YD Touch Panel Down
44 XL Touch Panel Left
45 YU Touch Panel Up
