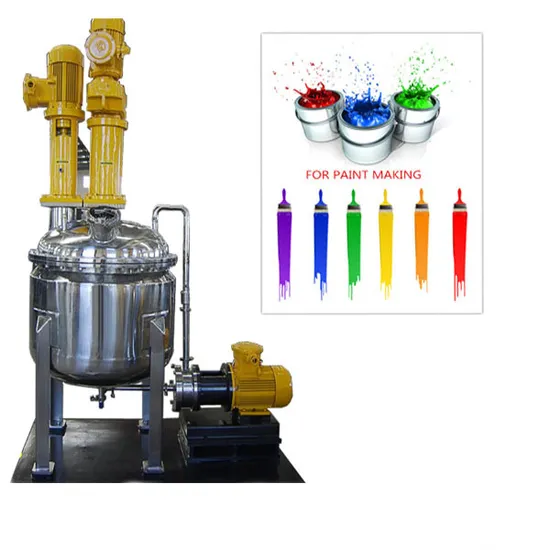

PVA Rubber Making Machine Stainless Steel Jacketed Electric Heating Reactor

Product Description

Detailed Photos
Market prospects Mixing tank is the main chemical reaction of the typical production equipment, which is widely used in resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production. To break down or combined the materials through mixing, filling and cooling, to promote the reaction of polymerization. The mixing tank consists of body, gears, mixing devices, heating devices, cooling devices, seal composition and some corresponding auxiliary equipment: distillation column, condenser, water separator, collecting cans, filters etc.

model	nominal capaci	actual capci	heating power	jacket capaci	inner pot size	jacket size	hole center	volume
50L	50	78	2*4	96	400	600	828	10
100L	100	127	2*6	127	500	700	928	15
300L	300	327	4*6	218	800	1000	1148	20
500L	500	509	4*9	269	900	1100	1252	25
1000L	1000	1017	4*12	400	1200	1400	1588	40
2000L	2000	2154	4*15	850	1400	1600	1840	80
3000L	3000	3201	5*15	1015	1600	1750	2040	100
4000L	4000	4020	5*15	1226	1600	1750	2070	120
5000L	5000	5170	5*18	1400	1800	2000	2320	140

Design capacity 50-30000L(volume in accordance with the requirements of the design)
Reaction temperature room temperature-300ºC
Reaction pressure -0.1~0.6Mpa
Equipment materail SUS304 stainless steel,SUS321 stainless steel ,SUS316,Q235-B carbon steel
Stirring form --anchor paddle ,block ,ribbon ,turbine tybe,a dispersing disc,modular like,
Heating methods electric heating ,steam heating ,heated in water
Heat transfer medium oil,steam,hot water,electricity and heating
Heat transfer structure jacket,outer half -tube,inner coil type
purpose 1)Unsaturated resin, alkyd resin, acrylic resin, polyester resin, curing agent and complete sets of production equipment.
2)Emulsion, white latex, water-based polyurethane, water-based glue sets of production equipment.
3). 107 rubber, silicone oil, anc other sets of production equipment, hot melt adhesive.
4). Complete sets of production equipment.
5). PU glue, adhesive, grafted gum syrup glue sets of production equipment.
6). Complete sets of raw rubber production equipment.
7). Waste silicone cracking, distillion, recycling sets of production equipment.
8). Dispersion paints, coatings, stirring and mixing equipment.
about us

Certifications
FAQ
Q : Can you send the formula for the products we want to make ?
A : Our machines can be used for many kinds of product making ,such as Resin , Paint, Adhesive Cosmetic , Food , Chemicals . There are many kinds of these products , so it's impossible for us to know all the formulas and technologies . We can assist you to find the raw material list you need , and after you place order with us , we can help you to find formula and technology , there will engineers to teach you how to make the product , and the cost will be on your account.
Q : Do you have machines in stock ?
A : Yes , but just the small-scale machines Machines are different with other products , most of the large-scale machines are designed according to our customers 'requirements different customers have different production requirements , so the technical parameter is different for most machines On the other hands , most of the our machines will cover a large area , so once the machines are finished , we will effect shipment after QC .
Q : Can you send the detailed drawings of the machine to us before we place order ?
A : We can send you a draft drawing of the machines , and after you place order and pay the deposit , our engineer will design the send you the detailed drawings . Once you confirm without questions , we will put it into production.
Q : Why does it take at least 20 days to finish the machine ?
A : Once receipt the deposit from you , we will design the drawings and make out the list of the materials and accessories for the production . Once the drawings are finished , our workers will start the production , from welding , polishing , assembling debugging , detection and so on . After finish , they need time to check the machines , if found any possible defect parts , they will return to the production until every part is 100% approved.
Q : Can we pay the balance after we receive the machines and test without problem.
A : It's unnessary to worry about the quality of our machines , we are confident in that . After the machine is finished . we can install and test the machine for you ( if you can not come to our factory ,we can record a video and send to you ) . Only after you check without problems , we will effect shipment .
