Making Machine /Napkin Paper Machine/Sanitary Napkin Machine/Paper Machine/Tissue Machine/Machine/Toilet Paper Machine

Product Description

Making Machine /Napkin Paper Machine/Sanitary Napkin Machine/Paper Machine/Tissue machine/Machine/Toilet paper machine

Product Description Description

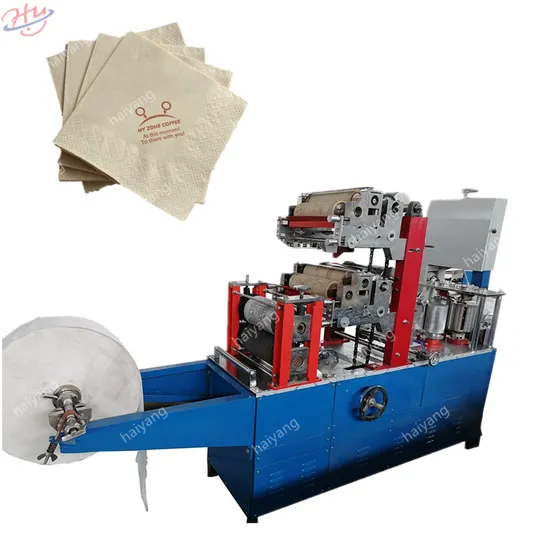

CIL-NP-7000A it uses jumbo rolls as raw paper to process various sizes of napkin paper. The machine start from raw material feeding , color printing, embossing, folding and cutting to form to be one line , and then packaging. The product is of sanitation and cleanness. If the customer need to produce various kind sizes (180 to 500) of napkin paper , the customer need to order the machine. Take CIL-NP-7000A-275 for example, this machine can produce the unfolded napkin paper is 270mmx275mm. While CIL-NP-7000A-330, this machine can produce the unfolded napkin paper is 330mmx330mm. So do others. We also accept orders according to clients' request.

Features
1. Controlled with rolling tension to fit production with different tension of raw paper
2. Count automatically and orderly placed, convenient to pack.
3. Attach with folding unit ensuring accurate position and unify sizes of product.
4. Adopt steel against wool embossing roller to have clear embossment.
5. The machine can equip with single color printing unit or two color printing unit according to customers' requirement.
6. We can different specification of machine according to customers' requirement.
7. This machine can equip with steel against steel embossing roller.


Specifications

Technical data:
Model	180	200	210	250	275	300	330
Size of Product folding	90X90	100X100	105X105	125X125	137.5X137.5	150X150	165X165
Size of Product unfolding	180X180	200X200	210X210	250X250	275X255	300X300	330X330
Width of raw material	180	200	210	250	275	300	330
Dia. of raw material	800-1200mm
Dia.of core	76mm
weight of raw material: 2 layers 16gsm 1 layer 22-28gsm(according to customer's requirement)
Production speed	500-800 sheets/min
Power	3.7Kw-4.5(380V or 220V 50Hz)
Overall size (m)	3.4-4.2x0.9-1.2x1.5(LxWxH)
Weight	About 1.0-2.5T
Dia. of raw material	800-1200mm
Dia.of core	76mm
