HOWO Foam Tank Fire Truck (Fire Truck Price Negotitation)
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZZ1168G4525C1R
Emission Standard
Euro 2
Transmission Type
Manual
Fuel
Diesel
Drive Wheel
4*4
Horsepower
150-250hp
Condition
New
Max Speed
90km/H
Fire Pump Rated Flow
30L/S@1.0MPa
Water Monitor Rated Flow
24L/S@1.0MPa
Passengers
6
Transport Package
Nude Packing/ RO-RO Ship or Bulk Ship
Specification
7870*2235*3040mm
Trademark
HOWO
Origin
Hubei, China
Product Description
Product DescriptionHOWO FOAM TANK FIRE TRUCK
| Model | Parameters | others |
| Overall Dimension | ≤7870×2235×3040mm | |
| GVW | 11250kg | |
| Engine Model | YC4E160-33 | |
| Engine Power | 160HP | |
| Wheelbase | 4500mm | |
| Driving Type | 4X4 | |
| Max.speed | 90km/h | |
| Emission Standard | 4260 ml/kW | Euro2 |
| Fire pump rated flow | 30L/s@1.0Mpa | Vacuum pump |
| water monitor rated flow | 24L/s@1.0MPa | |
| Water monitor range | Water range≥50m | |
| Passengers | 6 |
| Item | Parameters | Parameters | others | ||
| 1 | Water tank capacity | water | 4000kg | Exposed type | |
| Foam tank capacity | foam | 500kg | |||
| 2 | Fire pump model | CB10/30 | |||
| 3 | Fire pump performance | condition | pressure:1.0Mpa flow:30L/S | Use vacuum pump to priming water | |
| 4 | the installation site of fire pump | rear | |||
| 5 | The quantity of fire pump water outlet | 4 | |||
| 6 | Pressure gauge | 0-1.6 Mpa | 2.6 level | ||
| 7 | Vacuum gauge | -0.1- -1 MPa | 2.6 level | ||
| 8 | Water monitor (PL8/24) | Injection pressure | water:≥50m | ||
| 24L/S@1.0Mpa | |||||
| Depression/Elevation angle | -30-+70° | ||||
| Turning angle 360° | |||||
| Chassis No | ZZ1168G4525C1R 4×4 |
| Manufacturer | SINOTRUK HOWO |
| Engine | 160HP |
| Displacement | 4260ml/kW |
| Emission standards | Euro 2 |
| Wheel base | 4500 mm |
| Highest speed | 90 km/h |
| Structure | flat,4 doors,double row of seats |
| Passenger No | 6 |
| Drive type | Right hand drive |
| Equipment | Besides original equipments on chassis,add:100W siren,long line fire lights,marker lamp,outline marker lamp,PTO and so on |
| Dashboard | Speed/fuel/rotating speed dashboard |

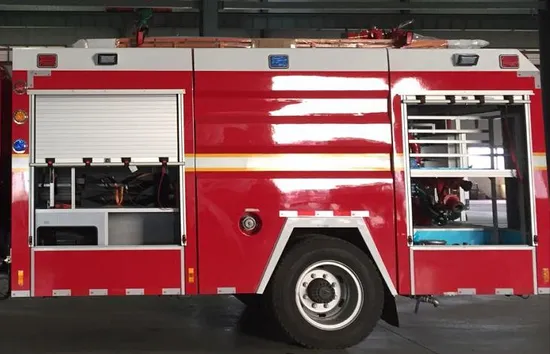

| The overall layout | The front and two sides of the middle of the body are storage compartments. It is exposed type independent water tank in the middle position of the central compartment. The back of the body is pump compartment. |
| The aluminum alloy shutters are installed at both sides of the body and the back of the pump compartment, the ladders are installed on the back of the body at the right side. | |
| Technological requirements | All welding panels and skeleton steels are through strict process of anti-rust, anti-corrosion and phosphating pickling. All the accessories,standard components are processed of galvanization,electroplate,Dacromet treatments and so on. After completing welding of the tank, the tank will be clear up and removed possible defects such as empty solder. And then it will be through 24-hour hydrostatic test to assure no leakage. |
| The overall layout | |
| Material | The outer frame of the body are all high quality Q235A, the inner frame use high strength aluminum alloy, the bottom panel adopt aluminum panels with anodic oxidation treatment. |
| The doors | The doors are aluminum alloy structure with locks which are good sealing and dustproof. |
| structure | Exposed tank, all metal welding structure, the overall corrosion resistance, have shock absorption measures |
| Material | Water tank:High quality carbon steel Q235A.(4~5mm); Foam tank: High quality stainless steel 304.(3~4mm) |
| capacity | Water :4000 kg;Foam :500kg |
| Structure | 2 DN 500mm inlet hole |
| 1 suction hole at the rear of pump room | |
| 1 overflow valve device | |
| 2 drain outlet with ball valve | |
| 2 DN65 inlets at both sides |
IV, Fire control system
| Consist of fire pump,fire monitor,pipeline system,system operation panel |
| Model No | CB10/30 fire pump | CB10/30 |
| Type | Centrifugal pump | |
| Rated flow | 30L/s@1.0MPa | |
| Outlet pressure | ≤1.3 MPa | |
| Maximum pumping height | 7m | |
| Maximum vacuum | ≥85kpa | |
| Priming device | Vacuum pump | |
| Priming time | ≤35s |
| Model No | PL8/24 fire monitor | PL8/24 fire monitor |
| Manufacturer | China Brand | |
| Rated flow | 24L/S | |
| Angle | ≥90° | |
| Range | water: ≥50m ; foam: ≥45m | |
| Rotation angle | ≥360° |
| Suction piping | 1 DN100 suction hole at the rear of the pump room with filter screen. | |
| Injection pipeline | 2 DN65 injection holes on both sides, 1 DN80 injection hole inside pump room. | |
| Injecting water to tank | injecting water from pump to water tank through 1 Φ65mm injection hole inside pump room | |
| Outlet pipeline | 2 DN65 normal pressure outlets at the rear, 1 DN65 normal pressure outlets at each side | |
| Cooling pipeline | Cooling pipeline,control valve to cooling PTO |
4,fire control system dashboard
| Display and control | Marks on all operation buttons,with pipeline layout and operation/maintenance illustration. Dashboard lays upper-left in the pump room with RPM/Vacuum/water pressure/liquid level indicator and lighting/valves control switches | |
| PRM control of pump | 1.control in the drive cabin 2.remote manual control in the pump room | |
V. Electrical equipments
| Additional electrical | Independent circuit |
| Auxiliary lighting | Head lamps are installed in the pump compartment and storage compartment. operating dashboard is equipped with lighting switch, indicator light.etc. It is convenient for observation. |
| Side flashing light | A set of red and blue flashing lights are installed on both sides of the vehicle body. |
| The warning device of the cabin | Long red light 1 piece, which is installed on the top of the cabin; Electronic alarm 1 piece, which is installed in the cabin; The control box is installed below in front of the driver |
| The fire lighting | The fire lighting 1 piece.Remote omni-directional rotation fire lighting |
| The main power | The vehicle battery is installed battery main switch. |
VI. On-board equipment
| The frame of equipment frame is used aluminium alloy material with inner-connecting technique to improve space utilization efficiency and changeability . According to the necessary of fire fighting manoeuvre and operating procedure,all the accessory equipments are anti-corrosion,shockproof,anti-drop,anti-scratch with push or pull special fixture and in reasonable space arrangement,compact,solid fixture,bold marks, convenient access. |
The accessories equipment list
| Item | Item | parameters | unit | quantity |
| 1 | sucking hose | Φ100×2m | piece | 4 |
| 2 | water filter | Φ100 | piece | 1 |
| 3 | water collector | Φ100mm×Φ65mm | piece | 1 |
| 4 | sucking pipe wrench | Φ100mm | piece | 2 |
| 5 | fire hydrant wrench | FB450 | piece | 1 |
| 6 | underground fire hydrant wrench | FBA800 | piece | 1 |
| 7 | 16 type water hose | Φ65mm×20m | disc | 8 |
| 8 | 13 type water hose | Φ65mm×5m | disc | 2 |
| 9 | adapter | Φ80mm×Φ65mm | set | 4 |
| 10 | straight stream nozzle | QZ19 | piece | 1 |
| 11 | diversion spray nozzle | QZH19 | piece | 1 |
| 12 | Foam nozzle | PQ8 | piece | 1 |
| 13 | Foam nozzle | PQ4 | piece | 1 |
| 14 | Foam suction hose | piece | 1 | |
| 15 | rubber hammer | piece | 1 | |
| 16 | hose protector | rubber | pair | 2 |
| 17 | hose hook | piece | 8 | |
| 18 | hose gaiter | piece | 8 | |
| 19 | fire axe | piece | 1 | |
| 20 | fire extinguisher | 2kgABC | piece | 1 |
| 21 | Original Chassis Tools | set | 1 | |
| 22 | Fire ladder | wood | piece | 1 |
