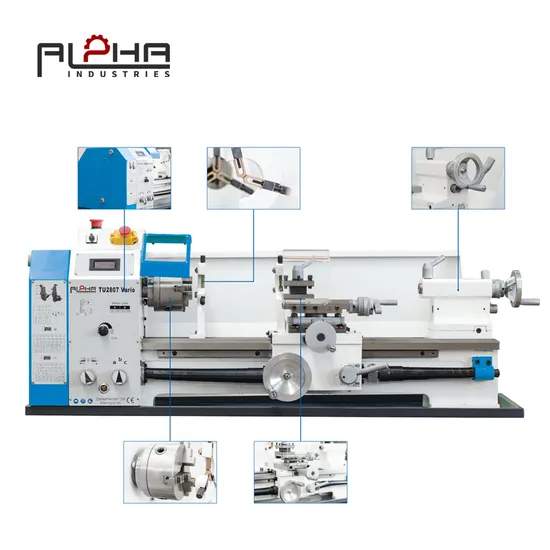

Lathe Machine Tu2807/Tu2807 Vario High Precision Lathe

Product Description

Product Parameters

Basic Info.
Model NO	TU2807 TU2807 VARIO		Power Source	Electric
Controlling Mode	Artificial		Automatic Grade	Manual
Setting Mode	Floor-type		Precision	HighPrecision
Certification	CE,ISO 9001		Condition	New
Specification	1220x660x560mm		Trademark	Alpha industries
Origin	China		Production Capacity	100 Sets/Year

Model No.	Unit	TU2807	TU2807 Vario
swing over bed	mm	Ø280(11.02")	Ø290(11.41")
swing over cross slide	mm	Ø170(6.69")	Ø175(6.89")
admits between	mm	700(27.56")	700(27.56")
center height	mm	140(5.51")	145(5.71)
width of bed	mm	180(7.09")	180(7.09")
spindle bore	mm	Ø26(1.02")	Ø26(1.02")
spindle taper		MT4	MT4
3-jaw chuck	mm	Ø125(4.92")	Ø125(4.92")
range of spindle speed	rpm	150-2000	150-2000
compound rest travel	mm	60(2.36")	60(2.36")
cross slide travel	mm	140(5.51")	145(5.71)
max. section of tool	mm	18×18(0.71"×0.71")	18×18(0.71"×0.71")
threads metric pitches	mm	0.2-3.5(0.01"-0.14")	0.2-3.5(0.01"-0.14")
threads imperial pitches		8-56TPI	8-56TPI
quill diameter	mm	Ø30(1.18")	Ø30(1.18")
quill travel	mm	105(4.13")	105(4.13")
quill taper		MT2	MT2
main motor power	W	850W	1100W
overall dimension(L×W×H)	mm	1220×660×560	1220×660×560
packing size(L×W×H)	mm	1316×556×630	1316×556×630
N.W./G.W.	kg	202/230	210/242
Standard Accessories
3-jaw chuck	Dead center MT1	Change gears kit	Hexagon wrench
Spanner	Splash guard	Oil gun
Optional Accessories
Steady rest	Follow rest	Turning tools 8×8mm	Live center mt1
Er16 collet	Er16 collet chuck	Face plate 100mm	4-jaw chuck
Back plate	Chip tray+stand
