China Industrial Dust Pollution Control Filter Cartridge Cyclone Dust Collector

Product Description

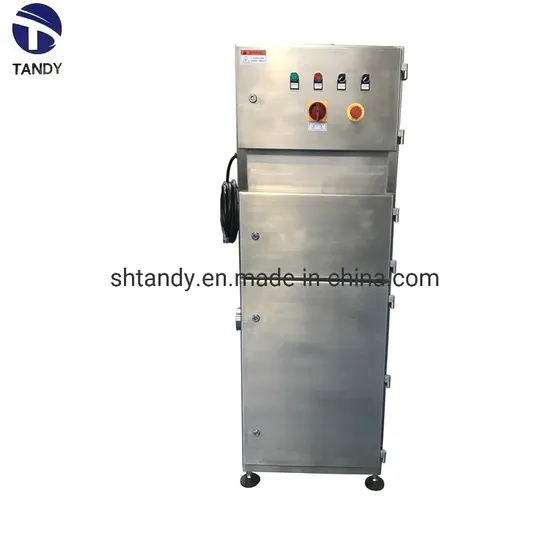

China Industrial Dust Pollution Control Filter Cartridge Cyclone Dust Collector
Main Technical Data:

Model no.	Blowing rate(m3/h)	Pressure(pa)	Power(kw)	Equipment max noise(Db)	Dimension(mm)	Weight (kg)
TDCC-1.5A	750-1050	940-690	1.62	60	680x600x1610	152
TDCC-2.2A	1350-1650	960-580	2.32	65	710x640x1740	190
TDCC-3.0A	1700-2400	1680-1100	3.12	70	770x670x1810	235
TDCC-4.0A	2650-3500	1680-1100	4.12	70	830X680X1880	290
TDCC-5.5A	3800-4500	1680-1100	5.62	75	910X760X1970	350
TDCC-7.5A	4800-7000	1680-1100	7.62	75	960X800X2020	420
Please feel free to contact us if you need more technical parameters !

FAQ:
1. Manufacturer or trading company : Manufacturer
2. Location : Songjiang district , Shanghai
3. Selling markets: Europe, American, Australia, Asia, Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
6. Warranty period: 1 year
Product Description:
The gas with powder goes into the dust collector through inlet hose under pressure, air expansion at this time, lower flow velocity will cause the large particles of powder separated from the gas with powder and fells into the dust drawer under the gravity. Other tiny powder is adhered to the filter's outer wall with the air flowing direction and then clean by the vibration device. After purification, the gas goes out from the top outlet through the filter and filter cloth. Main Features:
1. Elegant & splendid
Whole machine are made from full stainless steel including draught fan, it is accord with working environment of food grade.
2. High efficiency
The single drum filter of folding micron grade can absorb more powders
3. Strong strength
Special design of multi blade wind wheel with more stronger suction ability.
4. Convenient cleaning
One-key type vibration cleaning powders, be more efficient to remove the powders which attached the cylinder filter, clean dusts efficiently.
5. Hommization
Adding remote controlling system, be convenient to distance controlling equipment.
6. Lower noise
Special insulation cotton reduce noises more efficiently.
It is especially suitable for pharmaceutical, milk powder filling production line and other powder processing.
