Manual Sumore Drilling and Milling Machine Lathe Mill Drill with CE

Product Description

Product Description
Most Popular 38mm Bore Length Metal Cutting Multi-Purpose Lathe Machine
Quick Detail:
Processing material: aluminum, copper, metal, wood, plastic, etc
Swing over bed: 300mm
Distance between centers: 700mm
Hole through spindle: 38mm
Main Motor: 1.5KW
Description:

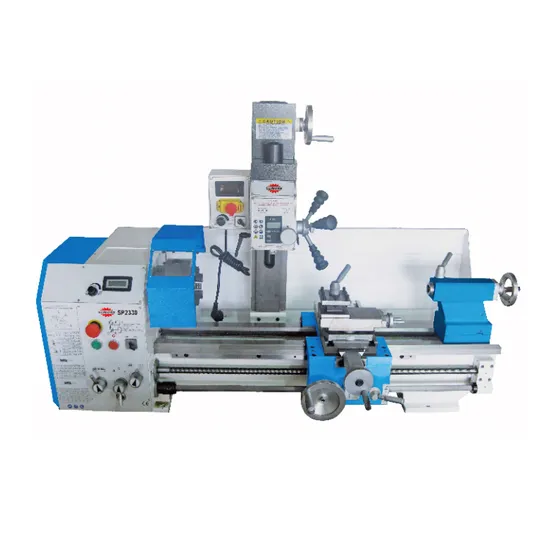

SP2330 Lathe milling machine combo multipurpose lathe machine belongs to one of our most economic manual lathe milling machine combo. It is new condition not used multipurpose lathe machine. And it is small in size and delicate in design. This metal cutting multipurpose lathe machine is made in China. The main features are as below:
1. 24-hours technical support by E-mail or telephone
2. Provide extra accessories for the machine
3.Also provide service of make program according to your drawings
4.Customized or special design is OK.
5.All of our products' warranty period for 12 months.
6.Man-made destroy will be exception
7.We can supply the materials or tech support to our customers to help
Product Parameters

Model Number	SP2330
Distance between centers	700mm
Swing over bed	300mm
Swing over cross slide	180mm
Width of bed	182mm
Taper of spindle bore	MT5
Spindle bore	38mm
Number of spindle speed	Variable speed
Range of spindle speed	80-2000r/min
Range of cross feed	0.01~0.10mm/rev
Range of longitudinal feed	0.085~0.832mm/rev
Range of imperial thread	8~56 T.P.I.
Range of metric thread	0.2~3.5mm
Top slide travel	70mm
Taper of tailstock quill	MT2
Main Motor	1.5KW
Packing size	1450X700X680mm
Net weight	260Kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
