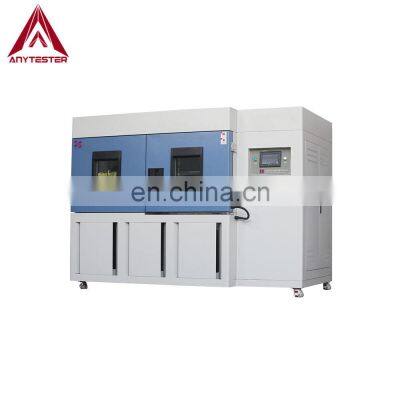

Compact Structure Lab Size Temperature & Humidity Impact Chamber

Product Description

Product Description
Product DescriptionAT845 Temperature & Humidity Impact Chamber is widely used in aviation, aerospace, electronics, IT, instrumentation, electrical products and other simulated test products in the surrounding air temperature changes rapidly under the conditions of the adaptability of the test and to provide reliability testing, product selection for reliability testing of electronic components.SpecificationModelAT845Working chamber volume450×500×600(mm)Sample basket size300×450×300(mm)Temp. range-20/-40/-50/-60/-70 ~ +150℃High temp. roomPre-heat temp range :RT-150℃Heating time:≤25minLow temp. roomPre-heat temp range :RT ~-70℃Cooling time:≤65minTemp. fluctuation≤±0.5℃Conversion time5~15 secondsPower supplyAC380V 50HzDetails & Features★Consists of the high-temperature room, low-temperature room, moving sample basket and refrigeration systems, heating systems and control systems and other components★Samples are quickly put into a pre-cooled low-temperature chamber or pre-heated high-temperature chamber, so the temperature change speed is very quickly★The chamber can be used for impact test chamber can also be used as a separate high-temperature box, low temperature box.★Compact structure, small size★Using the world's advanced configuration, the principle of advanced and reliable technology, noise and energy conservation are the best control.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1400*900*1600mmWeight200kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
