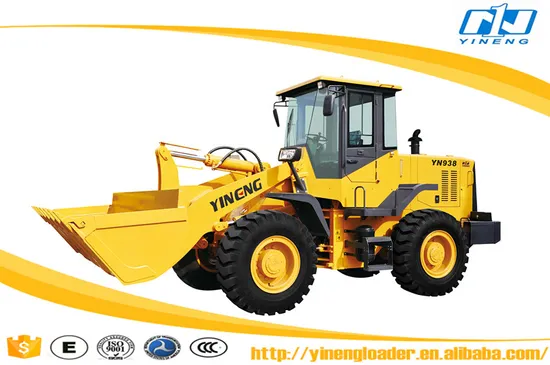

Yn938g Wheel Loader Yineng Explosion-Proof Armoured
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
YN938G
Bucket
Shovel
Transmission
Mechanical Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.8m3
Size
Medium-Sized
Certification
CE, ISO9001: 2000, GOST
Condition
New
Rated Load
3000kg
Dumping Height
3000mm
Max. Breakout Force
103kn
Max. Drawing Force
90kn
Rated Power
92kw/2300 Rpm
Tyre
17.5-25
Overall Dimensions
7020*2510*3250
Operating Weight
10500kg
Explosion-Proof Armoured
Explosion-Proof Armoured
Transport Package
1 Piece Disassembled, Naked Within 1 X 40hq Contai
Specification
CE approved
Trademark
YN series
Origin
Shandong Yineng Heavy Industry Co., Ltd
HS Code
84295100
Production Capacity
3000PCS Every Year
Product Description
FEATURES:Weichai DEUTZ diesel engine, higher power and reliability.
Hydrodynamic transmission, three-element and single stage torque converter, high reliability, easy maintenance.
Hangzhou Advance Gearbox Group BS428 powershift transmission, high efficiency and easy maintenance.
Gear-shift controlled by flexible shaft makes operation more flexible and reliable.
Single lever joystick control system, comfortable and flexible operation.
Double sealed hydraulic pipeline joints with 24° Awl and O ring of international standard, avoids oil leakage obviously;
Air over hydraulic disks on four wheel brakes.
Large space articulated frames make operation and traveling stable.
Working device with automatically leveling ability at high position.
Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
Integral, luxury instrument board.
New, luxury cabin.
OPTIONALS:
Cummins engine (Model 6BT5.9-C130, from DongFeng Cummins Co. ),
Air Condition,
Joystick/Pilot Control.
Quick Change/ Quick Hitch.
| Item | Specifications | Item | Specifications |
| Bucket capacity | 1.8 m 3 | Min. turning radius (outside of rear wheels) | 5160mm |
| Rated load | 3000 kg | Steering angle | 36º |
| Dumping height | 3000 mm | Min. ground clearance | 375mm |
| Dumping distance | 1100 mm | Wheel base | 2700mm |
| Boom lifting time | 5.5 S | Tread | 1865mm |
| Total cycling time | 10 S | Engine model | TD226B |
| Max. speed | 36 km/h | Rated power | 92kW/2300rpm |
| Max. breakout force | 120 kN | Tyrespecifications | 17.5-25 |
| Max. drawing force | 90 kN | Overall dimensions | 6910*2510*3100mm |
| Max. Gradeability | 30° | Operating weight | 10500kg |
