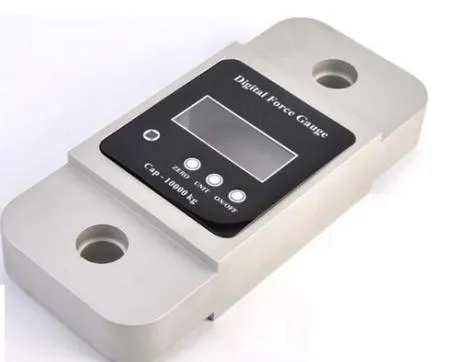

Heavy Duty Strain Gauge Dynamometer Wireless Crane Scale 1/2/3/5/10/20/30/50/100/200/250/300/550 (B18)

Product Description

1. Name: B18 Series Wireless Crane Scale
2. Type: B18
3. Capacity: 1t to 550t
4. Material: Aluminum/Alloy Steel
5. Functions
Body protection: Aluminum and alloy steel capacities are powder coated.
Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
Units: Units are clearly display on the screen, available in the following measurment reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN)
Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
Gravity regulation: The acceleration of gravity can be regulated through indicator parameter setting according to different places value.
Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User calibration(with password).
Set-Point: Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
Body indicator key: 4 local mechanical keys:"ON/OFF","ZERO","PEAK" and "Unit Change".
Indicator communications: Both RS232 serial port and USB port,solve most laptops without serial port problem. with the Everight company's PC host computer software,not only display weigh value and stable information on the PC ,can also enter company's name,complete storage ,print query and other functions .
Antenna: Internal antenna
Function on indicator keyboard: It can print data,time,Serial number, commodity number,net weight and total weight. Also can input 16 digits head information,It can store up to 2000 weighing records.It can be statistics by serial number or commodity number,also can statistics by data, statistical results can be printed with weighing number and total weight.
6. Main technical data:

Body Display	25mm (1'') 5digits LCD with backlight
Indicator Display	25mm (1'') 5digits LCD with backlight
Power on zero range	20% F.S.
Manual Zero Range	4% F.S.
Tare Range	20% F.S.
Stable Time	≤5 seconds
Overload Indication	100% F.S. + 9e
Max. Safety Load	125% F.S.
Ultimate Load	400% F.S.
Battery Life	≥50 hours
Body Battery	"LR6(AA)"size alkaline batteries. 1.5V*3

7. Features
B18 wireless dynamometer is an extremely well-built instrument for industry use ,as a standard wireless tool offer universal applications,Whether used as conventional crane weigher or to measure force, B18 wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with wireless handheld indicator.
Brans could supply you various small or big capacity crane scales. And we also could make new design or manufacture according to your own design. Dynamometer, dyna-link or crane testing scales are OK for us.
