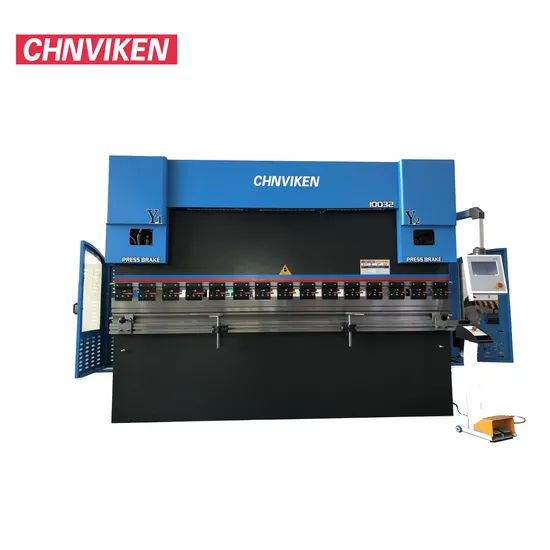

Viken Wc67K Inexpensive CNC Bending Machine, Stable Quality of The Press Brake with Tp10s System
Basic Info.
Warranty
2-year
Condition
New
Certification
ISO 9001:2000, CE
Automation
Automatic
Type
Press Brake
Machine Type
Torsion Bar
Video Outgoing-Inspection
Provided
Machinery Test Report
Provided
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure Ves
Weight (Kg)
7500
Applicable Industries
Building Material Shops, Machinery Repair Shops, M
Showroom Location
Egypt, Canada, UAE, Australia, None
Raw Material
Sheet Metal & Steel Plate
Material / Metal Processed
Stainless Steel, Alloy, Carbon Steel, Aluminum, Mi
Power
Hydraulic
Model:We67K-100t/3200
Bending Pressure:1000kN
Max Bending Width:3200mm
Motor Power (Kw):7.5
Max Opening Height:380mm
Slider Stroke:120mm
Depth of Throat: 320mm
Distance Between Housings: 2600mm
Transport Package
Plywood Box
Trademark
CHIVIKEN
Origin
Anhui, China
Product Description
Viken company is a professional enterprise of sheet metal processing equipment such as CNC press brake, fiber laser cutting machine, panel bender, laser welding machine, hydraulic shearing machine, punching machine and machine dies & blade.Our factory has advanced production equipment and a professional production team, which can customize various types and sizes of equipment according to the different needs of customers. They focus on quality control and product performance optimization to ensure that each piece of equipment can meet customer requirements. In order to maximize customer satisfaction, we provide free 7*24 online after-sales service, and conditional on-site service.
| Bending Capability | 80/3200 | 100/3200 | 100/4000 | 125/3200 | 125/4000 | 160/3200 | 160/4000 |
| Nominal Force(KN) | 800 | 1000 | 1000 | 1250 | 1250 | 1600 | 1600 |
| Worktable Length(mm) | 3200 | 3200 | 4000 | 3200 | 4000 | 3200 | 4000 |
| Column Distance(mm) | 2650 | 2610 | 3100 | 2610 | 3100 | 2600 | 3050 |
| Throat Depth(mm) | 250 | 320 | 320 | 320 | 320 | 320 | 320 |
| Ram Stroke(mm) | 120 | 120 | 120 | 120 | 120 | 180 | 180 |
| Main Motor Power(KW) | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 11 |
| No. | Component Name | Details |
| 1 | Controller | TP10S |
| 2 | Main Motor | Siemens Main Motor |
| 3 | Hydraulic system | RexRoth, Germany |
| 4 | Oil pump | Sunny, America |
| 5 | Electrical components | Schneider, France |
| 6 | Servo motor and driver | Estun, China Nanjing |
| 7 | Ball screw linear guide rail | HIWIN, China Taiwan |
| 8 | Hydro-cylinder | VIKEN |
| 9 | Bear | NSK, China Shanghai |
| 10 | Punch and Die | 42CrMo Material |
