2. Advanced CNC Press Brake Machine for Efficient Metal Bending

Product Description

Product Introduction

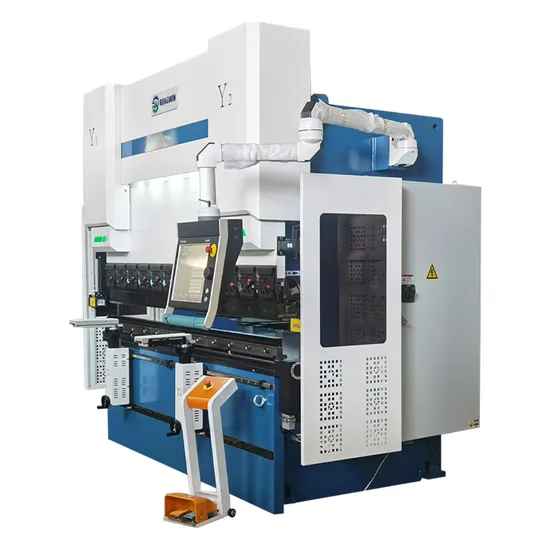

Maximizing Efficiency with Hybrid Press Brake Technology: An In-Depth Look at the WF67K-M Press Brake Machine
· ePrAX control is a newly developed electro-hydraulic control scheme, which combines the advantages of two driving technologies: strong hydraulic power and durability, compact design without external pipelines, and directly installed on the cylinder, cleaner and leak-free.
· The system converts electrical signal transmission is carried out between CNC controller into mechanical linear motion. In order to accomplish this motion, signal transmission is carried out between CNC controller of machine tool and motor drive controller. The synchronous cylinder controls the following work and fast running according to the preset working curve . Avariable speed servo pump unit is used to drive and control the position of the bending tool and the bending force in the bending process. Standard configuration

Product advantages

Optional configuration

Crowning Table Workbench adopts mechanical torsion compensation system , as the mechanical compensation point , so the mechanical compensation effect is far greater than the hydraulic compensation , to achieve effective compensation without blind spots and improve the bending accuracy , to ensure the long-term stability.
Packaging & Shipping

Technical parameter

Model	Nominal Pressure (mm)	Workbench length (mm)	Poles distance (mm)	Throat depth (mm)	Slipper Stroke (mm)	MaxOpen (mm)	Main motor (KW)	Dimension (L×W×H)(mm)
30T/1600	300	1600	1250	170	90	195	3	1600×920×1660
30T/2050	300	2050	1450	170	90	195	3	2050×920×1660
40T/2200	400	2200	1850	245	100	330	5.5	2260×1200×1950
40T/2500	400	2500	2150	245	100	330	5.5	2560×1200×1950
50T/2500	500	2500	2150	245	100	330	5.5	2560×1200×1950
63T/2500	630	2500	2000	250	120	350	5.5	2560×1350×2120
80T/2500	800	2500	2000	250	120	350	7.5	2560×1350×2120
80T/3200	800	3200	2580	250	120	350	7.5	3260×1350×2120
80T/4000	800	4000	2980	250	120	350	7.5	4060×1350×2250
100T/2500	1000	2500	2000	300	130	400	7.5	2560×1465×2300
100T/3200	1000	3200	2580	300	130	400	7.5	3260×1465×2300
100T/4000	1000	4000	2980	300	130	400	7.5	4060×1465×2300
125T/2500	1250	2500	2000	300	130	400	11	2560×1465×2350
125T/3200	1250	3200	2580	300	130	400	11	3260×1465×2350
125T/4000	1250	4000	2980	300	130	400	11	4060×1465×2350
160T/3200	1600	3200	2580	340	150	450	11	3260×1620×2700
160T/4000	1600	4000	2980	340	150	450	11	4060×1620×2700
160T/5000	1600	5000	4000	340	150	450	11	5060×1620×2850
160T/6000	1600	6000	5000	340	150	450	11	6060×1620×3000
200T/3200	2000	3200	2580	340	150	450	15	3260×1620×2700
200T/4000	2000	4000	2980	340	150	450	15	4060×1620×2850
200T/5000	2000	5000	4000	340	150	450	15	5060×1620×2850
200T/6000	2000	6000	5000	340	150	450	15	6060×1620×3000
250T/3200	2500	3200	2580	400	200	500	18.5	3260×1700×2900
250T/4000	2500	4000	2980	400	200	500	18.5	4060×1700×2900
250T/5000	2500	5000	4000	400	200	500	18.5	5060×1700×3000
250T/6000	2500	6000	5000	400	200	500	18.5	6060×1800×3200
300T/3200	3000	3200	2580	400	200	520	22	3260×2000×3000
300T/4000	3000	4000	2980	400	200	520	22	4060×2000×3000
300T/5000	3000	5000	4000	400	200	520	22	5060×2000×3200
300T/6000	3000	6000	5000	400	200	520	22	6060×2100×3400
350T/3200	3500	3200	2580	400	250	570	22	3260×2000×3000
350T/4000	3000	4000	2980	400	250	570	22	4060×2000×3000
350T/5000	3000	5000	4000	400	250	570	22	5060×2000×3200
350T/6000	3000	6000	5000	400	250	570	22	6060×2100×3400
400T/3200	4000	3200	2580	400	250	580	22	3260×2000×3100
400T/4000	4000	4000	2980	400	250	580	22	4060×2100×2900
400T/5000	4000	5000	4000	400	250	580	22	5060×2000×3300
500T/4000	5000	4000	2980	500	300	640	37	4100×2300×3600
500T/5000	5000	5000	4000	500	300	640	37	5100×2450×4000
500T/6000	5000	6000	5000	500	300	640	37	6100×2450×4200
600T/4000	6000	4000	2980	500	300	660	45	4100×2300×3600
600T/5000	6000	5000	4000	500	300	660	45	5100×2450×4000
600T/6000	6000	6000	5000	500	300	660	45	6100×2450×4200

Related Products
Company Profile
Founded in 2017 years ,Nanjing RONGWIN Machinery Technology Co., Ltd is focus on press brake manufacturing and a professional one-stop smart custom metal solution service supplier . We are committed to building a strong Chinese metal working machinery and spare parts supply Chain System .
We have a dream "Let China's one-stop smart custom metal solution serve the world " and "We want to become a respected Chinese press brake manufacture,live 100 years " That's why we're always trying to keep our users satisfied .
We are specialized at metal working machinery and spar parts, like press brake, panel bender,fiber laser cutting machine, shearing machine, rolling machine, V grooving machine, hydraulic press, power press, ironworker, notching machine, tube cutting machine,tube bending machine ,HVAC Dust Machine, punching die, blades, kinds of toolings, etc. We can give customer all the aspect solutions for the metal industry fabrication machinery. We can guide customers for choosing their metal processing equipment so that customer can get the most cost-effective solution by our guide. Meanwhile we also can do O E M & O D M service. We have professional engineer support, high efficiency sales team and competitive price , we design our machine in a top class level which makes our machine in a good looking appearance , due to the good after sale service and reliable quality, we have sold to many foreign customers, they like our machines, they usually buy from us not only one time, now we already sold to more than 70 countries, including Europe, South America like Brazil, U S A, Canada, Russia, Vietnam, Pakistan, Australia ,New Zealand, Africa, Middle East country etc. After several years' development, We already applied some patent, and also got CE certificate and SGS for Press Brake, Laser Cutting machine,Panel Bender,V grooving machine etc, we will grow up together with our customer's support, we believe that our company will have a bright future.
Please trust ROGNWIN .We are always trying to make you satisfied .
FAQ
Q1: Can you give us a better price?
A: The more products you buy, the more discounts you get.
Q2: Can I make a OEM order?
A: We can supply different sizes.our products can be customized.But you need to tell us more detailed requirements.
Q3: How does your factory do regarding quality control?
A: "Quality is priority." Our team always attach great importance to quality controlling from the very beginning to the verv end.
Q4: What's your MOQ order?
A: Usually it's a minimum order. If you need more, we can negotiate a discount.
Q5: How to find the right product?
A: You can provide us with photos or your requirements, and we can give you Suggestions as appropriate
