Estop CNC Duplex Milling Machine Th-850nc CNC Double Head Milling Machine

Product Description

Product Description

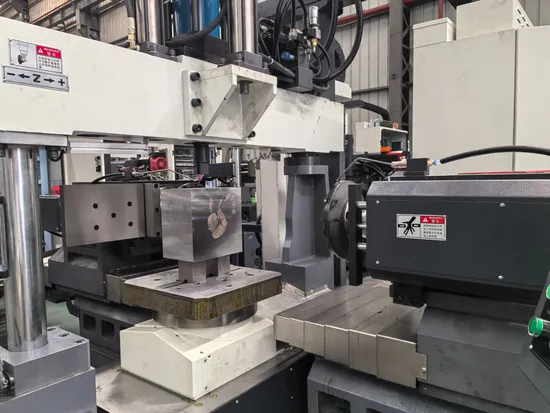

EsTop Duplex Milling Machine TH-850NC CNC Twin Head Milling Machine:
The EsTOP series of duplex milling machines make it simple to machine precision angles and dimensions on blocks and plates for any application. -Easy to use input screen for parameters.
-Once the cycle is complete, the clamps retract and the finished part can be removed and replaced with the next.
-Continuously summarize and improve through long-term operational practice, develop and improve various functions, make it easier to operate, safer and faster. More Products:
Product Parameters
Product Parameters:

Specifications of TWIN-HEAD CNC MILLING MACHINE TH-850NC
Items	Name	Specification
TWIN-HEAD CNC MILLING MACHINE TH-850NC		TH-850NC
Cutting capacity	Control axis number	4
	Cutting capacity mm	2*3.0
	Cutting width mm	60-850
Worktable	Dimensions mm	600*600
	Max loading weight KG	2000
Spindle	Spindle speed(Infinitely variable speeds) rpm	50-500
	Spindle power KW	2*15
	Spindle taper	NT50
	Cutting diameter mm	250/300
X/Y/Z axis	X/Y/Z/A axis motor power	3/3/3/2
	X/Y/Z Max feed speed m/min:	8000/8000/8000
	X/Y/Z Max cutting speed	6000/6000/6000
Accuracy	Squareness mm/300mm	0.015
	Accuracy for dimension mm/300mm	0.015
Tank capacity	Hydraulic oil tank L	80
	Lubrication oil tank L	3
Power	Power	AC380V/220 45KVA
Others	Machine net weight KG	12500
	Space M	4.6*4.2

Main part of CNC TWIN HEAD MILLING MACHINE TH-430NC:

Sort	Name	Quantity	Origin	Remark
Machinery	Worktable ball screw	3	Taiwan HIWIN	steady transmission, High accuracy, wear-proof
	guide rail	3	High frequency hardened rail of Quenching	Good bearing, Heavy cutting
	Main Spindle (Horizontal)	2	Taiwan POSA	Low noise, high strength, Taiwan famous brand
	Flexible stainless steel plate shield of worktable	2	Domestic	High strength, Strong durability, dust-proof, Protect the guide rail and ball screw.
	Base casting	1	HT150	Good stability, excellent wear-ability
	Automatic lubricating machine	3	Domestic	Electronic-self-lubrication, Quantitative oil supply to the each part
	Oil line	3	Domestic	Copper tube
	Bearing		Germany	World famous brand, High accuracy, High quality
Electrical appliances	CNC system	1	Japan Mitsubishi	Japan brand of CNC
	Servo motor	3	Japan Mitsubishi	Japan brand of CNC
	High precision rotary table	1	Taiwan Central Star	Taiwan famous brand, High accuracy
	Spindle motor	2	CTB	Multitronic, Meet the requirements of different processing speed
	AC contactor		Taiwan TECO	Famous brand, steady property
	Relay		Japan OMRON
