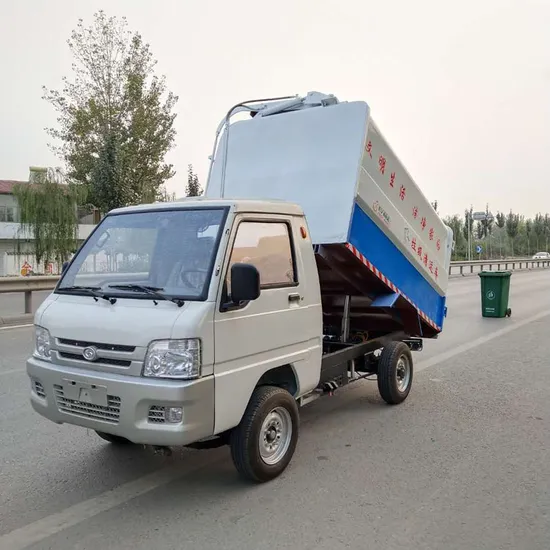

Jiarun Garbage Sorting Transport Vehicle with New Energy Bucket Loading and Unloading

Product Description

Adopting pure electric reinforced small truck chassis, professionally assembled sealed garbage cans, hydraulic system, operating system,
a car can be equipped with a dozen of garbage cans, can realize a car and a number of garbage cans joint operation, cyclic transportation,
and fully improve the transport capacity of the vehicle.
Particularly suitable for short-distance transportation, such as sanitation department of the town of garbage cleaning, transportation, etc.,
can also be used in various sanitation and municipal and large-scale factories and mines to transport a variety of garbage, ash, sand, stone,
soil and other bulk building materials, but also in the mines or coal mines to transport ore or coal.
Detailed Photos Product Parameters

Vehicle technical parameters
Name	New energy garbage truck	Self-discharging method	Hydraulic oil jack tipping
Vehicle Weight	1200 kgs	Bin Volume(m3)	4-5
Rating load weight(Kg)	1750	Vehicle Size(mm)	4200× 1800×2100
Climbing Power	15%	Bin Size(mm)	2400× 1400× 1500
Endurance mileage (km)	60-80	Battery	Lead-acid battery
Battery Capacity(ah)	120ah *6	Charging Time(h)	6-9h
Motor power(w)	4000w	Max speed	40km/h
Bin loading time	15s	Bin descent time	10s
Lift time	15s	Car descent time	10s
Brake	Oil brake	Wheel	155-12
Rear door opening mode	Rear door folding mode

Our Advantages Hydraulic double-cylinder lifting, stable and efficient
Hydraulic bucket lifter rated mounting quality ≥250Kg, at the same time applicable to 120L, 240L and other standard garbage cans.
The unloading lifting angle reaches more than 80 degrees, which can be docked with large compressed garbage trucks for unloading.
At the same time with the scraper, skateboard compression function, the compartment loading utilization rate is higher, the same volume loading capacity is larger. Adopting handle to control the loading and unloading process, stopping and starting at any position, adjustable lifting speed, easy maintenance and high reliability.
Equipped with three-phase synchronous AC motor pump, infinitely adjustable speed, stable work, intelligent control, flexible operation.
Setting emergency stop switch, humanization, safety is guaranteed.
Lightweight compartment, anti-corrosion and rust prevention
The maximum volume of the compartment is 2.8m³, with its own legs to ensure the safety of the compartment lifting. The enclosed welded ship design around the compartment has good sealing in the collection and transportation process, effectively avoiding secondary pollution.
The compartment adopts high-strength steel plate, light weight, more than 15% lighter than the same type of vehicle. The whole compartment is cathodic electrophoresis, with good anti-corrosion and anti-rust performance, and can be optionally coated with anti-corrosion paint or stainless steel compartment.
