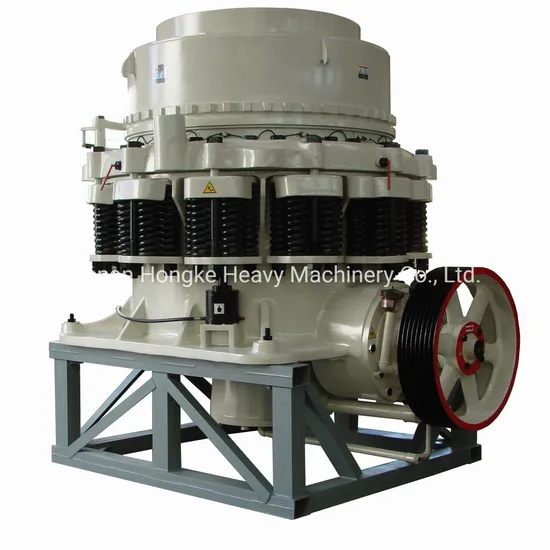

Stone Spring Cone Crusher for Sale

Product Description

Cone Crusher Main Types and Function of Cone Crusher This series of crusher machine can be classified into coarse cone crusher, medium cone crusher and fine cone crusher.
The standard type is suitable for medium crushing, and the medium type and the short-headed type are for fine crushing.
The customers can choose different types according to their specific need.
Advantages and Benefits of Cone Crusher
This cone crusher is suitable for crushing various ores and rocks with medium over hardness, which has the features of reliable structure, high production efficiency, convenient adjustment and economic use. It adopts two sealing means: dry oil and water to separate stone powders and lubrication grease to ensure reliable work of the machine.
Features of Cone crusher The customers can choose different type according to specific needs.
Working principle of Cone Crusher During operation, the motor drives the eccentric shaft to turn around through a horizontal axle and a pair of bevel gear.
The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time.
In this way, the ores and rocks will be pressed and crooked and crushed.
Technical Data of Cone Crusher

Model		Diameter of crushing cone (mm)	Max.feeding size (mm)	Width of discharge opening (mm)	Processing capacity (t/h)	Motor power (kw)	Swing frequency of main shaft	Total weight (t)	Dimensions(L×W×H) (mm)
PYB	600	600	65	12-25	40	30	356	5	2234×1370×1675
PYD			35	3-13	12-23			5.5	2234×1370×1675
PYB	900	900	115	15-50	50-90	55	333	11.2	2692×1640×2350
PYZ			60	5-20	20-65			11.2	2692×1640×2350
PYD			50	3-13	15-50			11.3	2692×1640×2350
PYB	1200	1200	145	20-50	110-168	110	300	24.7	2790×1878×2844
PYZ			100	8-25	42-135			25	2790×1878×2844
PYD			50	3-15	18-105			25.3	2790×1878×2844
PYB	1750	1750	215	25-50	280-480	160	245	50.3	3910×2894×3809
PYZ			185	10-30	115-320			50.3	3910×2894×3809
PYD			85	5-13	75-230			50.2	3910×2894×3809
PYB	2200	2200	300	30-60	59-1000	280-260	220	80	4622×3302×4470
PYZ			230	10-30	200-580			80	4622×3302×4470
PYD			100	5-15	120-340			81.4	4622×3302×4470
