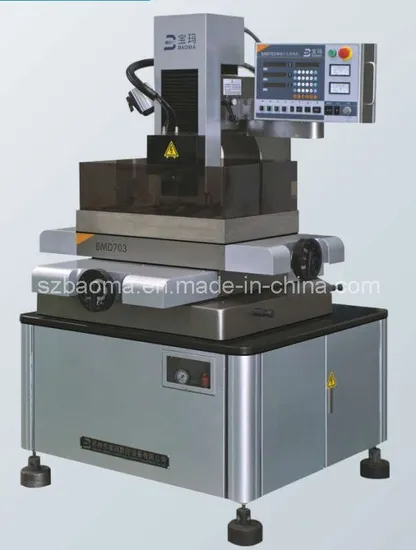

Small Hole EDM Machine (BMD703-400)
| US$1.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BMD703-400
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
0.2-3.0 mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE
Color
Grey
Casting
Ht250
Brand
Baoma
Voltage
Adjustable
Transport Package
1unit/Plywood Case
Specification
CE; ISO9001:2000; ISO14001:2004
Trademark
BAOMA
Origin
China
HS Code
84563010
Production Capacity
1200units/Year
Product Description
Main FunctionA. There is a window on the machine bed for pump pressure, which is easy and convenient to look and adapt water pressure.
B. Servo control system is adopted and improved, which make drilling re-track speed 2 times quicker than dB703
C. There is slider water tank, which saves space and is more environmental.
D. There is oil-tank for lubrication, which is more convenient to operate and fluid to lubricate.
E. Able to drill various conductive metals, such as stainless steel, chilly steel, solid carbide, copper, aluminum etc.
F. Able to drill holes range from diameter 0.2- 3mm with max depth-diameter ration 300: 1.
G. It is more stable while drilling hole of 0.2mm
H. Drilling speed 30-60mm/min
I. Able to drill directly into bevel or curve surface.
J. Three axis digital display
K. Drilling depth positioning function for Z axis
L. Control system can drill group hole and positioning automatically.
| Item | BMD703-400 |
| Worktable size(L×W)mm | 486×310 |
| Table travel(X×Y)mm | 400×300 |
| Z axis travel mm | 300+(320) |
| Max. drilling depth mm | 0-300 |
| Max. drilling speed mm2/min | 60 |
| Max re-track speed of spindle mm/min | 320 |
| Max. working current A | 30 |
| Electrode diameter | 0.2-3.0 |
| Load of table kg | 300 |
| Working solution | Water/Saponification |
| Working reservoir capacity L | 30 |
| Power supply | 380V AC/50 Hz or 415V AC/50 Hz |
| Max. Power consumption KVA | 3.5 |
| Machine dimension mm | 1236×1025mm×1934 |
| Package dimension mm | 1400×1450×2050 |
| Machine weight kg | 700 |
| Controller type | Automatic Z axis |
| Digital Display | X,Y,Z axis |
| Function of setting depth | yes |
| Function of group drilling | yes |
