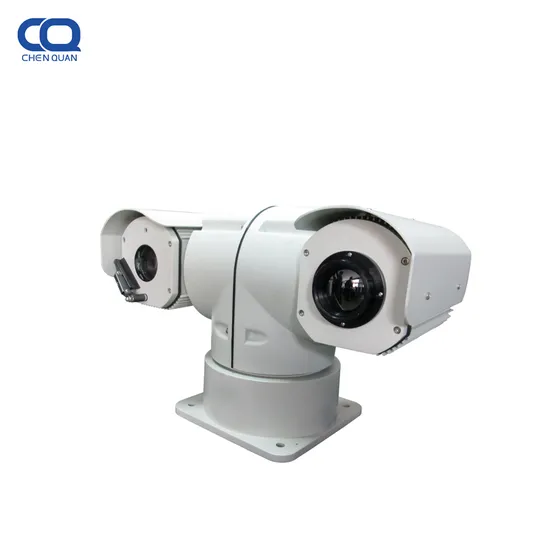

1.7km 384X288 T-Shaped City Safety Surveillance Day Night 20mm Fixed Vehicle Mounted Thermal Camera
| US$2,500.00-3,100.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
CQ-BTVC41C02-1930
Type
Video Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
650tvl
Kind
Autofocus Lens
Certification
CE, FCC
Feature
Waterproof / Weatherproof, High Definition
Effective Distance
≧30m
Sensor Size
1/2.8"
Remote Control
With Remote Control
Transport Package
Export Standard
Trademark
CQ or customized
Origin
Zhejiang
Production Capacity
100 Sets / Day
Packaging & Delivery
Package Size
54.00cm * 44.00cm * 42.00cm
Package Gross Weight
15.000kg
Product Description
| Model | CQ-BTVC41C02-1930 | |
| Thermal Distance (DRI) | Vehicle (2.3x2.3m) | Detection: 1.7km; Recognition: 0.5km; Identification: 0.2km |
| Human (1.8x0.6m) | Detection: 0.7km; Recognition: 0.3km; Identification: 0.15km | |
| IVS Range | 0.7km for Vehicle; 0.2km for Human | |
| Thermal Sensor | Sensor | 5th generation uncooled FPA sensor |
| Effective Pixels | 384x288 50Hz | |
| Pixel Size | 12μm | |
| NETD | 40mK | |
| Spectral Range | 7.5~14μm, LWIR | |
| Thermal Lens | Focal length | 20mm Fixed |
| FOV | 18.5°×14° | |
| Angular radian | 0.85mrad | |
| Visible Distance (DRI) | Vehicle (2.3x2.3m) | Detection: 9.5km; Recognition: 5.7km; Identification: 2.5km |
| Human (1.8x0.6m) | Detection: 3.7km; Recognition: 2km; Identification: 1km | |
| Visible Camera | Sensor | 1/2.8'' Star Level CMOS, Integrated ICR Dual Filter D/N Switch |
| Resolution | 1920(H)x1080(V) | |
| SD Card | Support | |
| Visible Lens | Focal Lens | 4.7-141mm 30X |
| Image Stabilization | Support | |
| Focus Control | Manual/Auto | |
| PTZ | Patrol | 6*patrol route, 1* patrol line |
| Rotation | Pan: 0~360°, tilt: -90~+90° | |
| Speed | Pan: 0.01~100°/S, Tilt: 0.01~80°/S | |
| Preset | 255 | |
| Enhance | Fan/Wiper/Heater attached | |
| Environmental | Operate Temp | -25ºC~+55ºC (-40ºC optional) |
| Storage Temp | -35ºC~+75ºC | |
| Humidity | <90% | |
| Ingress Protect | IP66 | |
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug | |
| Power | 50W (Peak) | |
