Automatic Toilet Paper Machine Production Line with Log Saw Cutting and Packing Machine

Product Description

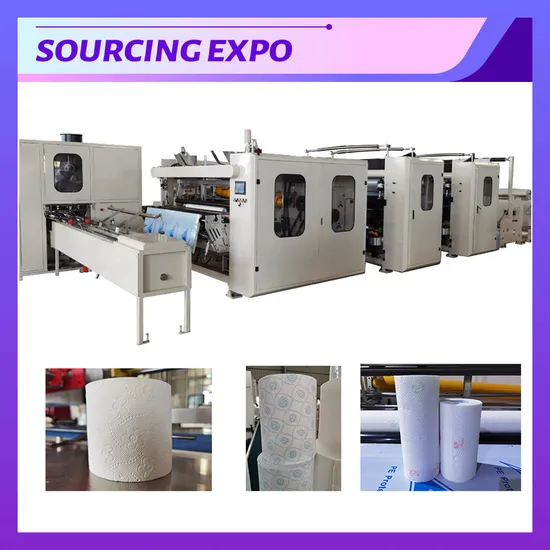

Automatic toilet paper machine production line with log saw cutting and packing machine
This production line are consist of full automatic rewinding machine, accumulator, automatic log saw and multi packing machine. Automatic loading material to finished cutting and packing output, whole line cooperate smoothly, stable performance, all automatic by machine, more save manpower, and reduce the labor intensity and improve production efficiency. it's a best choice for production of toilet paper and kitchen towel products. Toilet paper machine
Automatic Toilet Tissue Rewinding Machine Main Technical Parameter:

Max jumbo roll width	1750mm (other size can be ordered) Can order from 1200mm to 3000mm
Max jumbo roll diameter	φ1100mm(for bigger size can be ordered)
Jumbo roll inner diameter	3inches (76.2mm)
Finished products diameter	φ90-140mm(other size can be ordered)
Roll core diameter	38-48mm (other size can be ordered)
Production speed	0~180m/min
Machine power	18kw (depends on machine model)
Roll core unit	With or without roll core
Jumbo roll stands	1~3 stands (standard is 2)
Embossing unit	Single embossing, double embossing (steel to rubber roller, steel to paper roller, steel to steel roller)
Jumbo roll loading	With air cylinder loading
Parameter setting	Man-machine interface operation, Touch screen
Machine overall dimension	10000*3000*2000mm
Machine weight	12T (approximately)
program controlling	PLC
air system	0.5-0.8Mpa
perforation pitch	4 pieces of anvil blades

Double Channel High-speed Log Saw Machine
Machine main technical parameters:

Machine model	JY-JTZ-DHX
Toilet paper rolls length	1750mm-3000mm(other sizes can be ordered)
Toilet paper rolls diameter	φ100-115mm(other sizes can be ordered)
Design speed	150cust/min (2rolls/cut)
Stable production speed	100cust/min (2rolls/cut)
Cutting blade grinding system	pneumatic sharpen, grinding time can be set on screen
driving system	Delta servo motor
Machine power	11KW
Machine size	About 6500*2500*2000mm
Machine weight	About 4.5T

Toilet paper multi rolls packaging machine
Machine Main technical parameter:
single roll size: customizable (length, diameter need to be selected).
Packing method: two lines, one or two layers, can pack from 2 to max 24 rolls
Voltage: 220V, 50Hz
Main power: 2KW
air Pressure :0.6MPA
Packing speed: 8-10 bag/min
Machine size: 7000*1300*1400mm
Weight :700KG
Our workshop:
About the package and shipping:
About Us:
Quanzhou Jingyi Machinery Co.,ltd is professional manufacturer for paper machines:
1) Toilet Paper Machine and kitchen towel machine (1.2m--2.8m width of jumbo roll);
2) Facial Tissue Machine (2-14 lanes);
3) Napkin Paper machine;
4) Hand Towel Paper Machine;
5) Handkerchief Paper Machine;
6) All kinds of Paper Cutting and Packing Machine.
Our Service:
Pre-Sale Services: We will reply your inquiy within 24 hours. According to your actual situation and budget, we will provide professional consultation and best solution with strong technical support.
After-Sales Service:
1.We will send the engineer or technician to your factory for installation, debugging and training the workers. Also welcome you come to our factory for learning the machine operation.
2.Warranty: One year guarantee, service for ever. Our technical team will give you 100% rest assured global presence service if necessary.
3.Wearing parts of machine will be sent to customers with a good preferential price.
