All Dielectric Self-Supporting Aerial Cable ADSS Optical Fiber Cable

Product Description

All Dielectric Self-supporting Aerial Cable ADSS Optical Fiber Cable

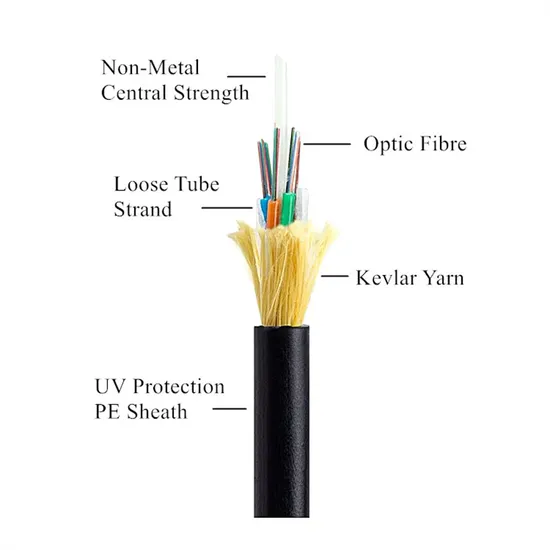

Product Description ADSS optical cable adopts loose tube layer stranding structure, with 250µm optical fiber sheathed in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The loose tube (and filling rope) are twisted around the non-metallic center reinforcement core (FRP) to form a compact cable core, and the gaps in the cable core are filled with water-blocking grease. A polyethylene (PE) inner sheath is extruded outside the cable core, and then aramid is twisted for reinforcement, and finally a polyethylene (PE) outer sheath or an electric tracking (AT) outer sheath is extruded.

Product Parameters

Cable type	ADSS
Optical fiber counts	2-288
Optical fiber color	Blue,Orange,Green,Brown,Slate,White,Red,Black,Yellow,Violet,Pink,Aqua
Fiber Types	Single-mode and Multimode
Cable Constructions	S-Z Stranded loose tube
Strength Member	FRP
Sheath Options	Double PE Sheath
Armor	Aramid yarn
Operating Temperature	-40ºC-70ºC
Tensile Strength	RTS:40000, MAT:16000
Crush Resistance	Short term 2200N/100mmLong term 1000N/100mm
Minimum bend radius	Dynamic 25DStatic 12.5D

Notes:
1.The above parameters are typical value;
2.The cable spec can be designed according to customer's requirement.
