Fully Automatic Human Beast Use 5ml 10ml 25ml Vial Vaccine Liquid Filling Stoppering Capping Machinery

Product Description

Fully Automatic Human Beast Use 5ml 10ml 25ml
Vial Vaccine Liquid Filling Stoppering Capping Machinery
Product Description:

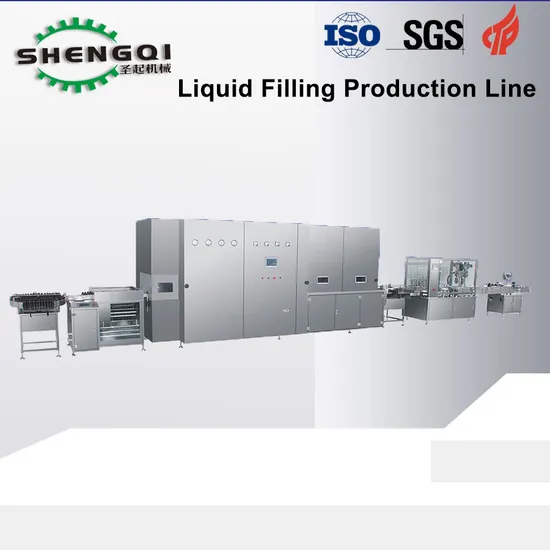

This machine is the main filling and sealing machine in liquid production line, in line with GMP requirements. It is made of high quality 304 stainless steel material, and the part of contacting liquid is made of 316 stainless steel. Suitable for filling, capping, capping (rolling/capping) of all kinds of bottled liquid. The machine combines filling and sealing into one. Advanced design, compact structure. The replacement is very convenient, and the combination with other equipment can achieve assembly line production.
Mainly used for round, square or shaped bottle, such as glass or plastic filling tincture water, syrup, juice, wine, reagent, pesticide and other liquid, more suitable for the large capacity easy foaming liquid filling, can improve the efficiency, and has reasonable structure, reliable performance, wide adaptability, can be used in pharmaceutical, chemical, light industry and other industries.

Adopt plunger metering pump (optional peristaltic pump, ceramic pump, servo pump, etc.) filling mode, suitable for all kinds of viscous liquid, high accuracy; The structure of the pump adopts quick connection disassembly mechanism for easy cleaning and disinfection. PLC control system, frequency conversion speed regulation, high degree of automation. The filling quantity is easy to adjust, and the filling needle is designed with anti-drip device. The machine can be used for different specifications of bottles, easy adjustment, can be completed in a short time. The machine is designed according to GMP requirements.
Product Specification:

Production Capacity	20-50BPM
Filling Volume	<5L(customized)
Filling Error	+/-1%
Applicable Bottles	customized
Applicable Caps	cusstomized
Sealing Rate	>99%
Dimension	2500*1500*1600mm
Weight	500Kg about
