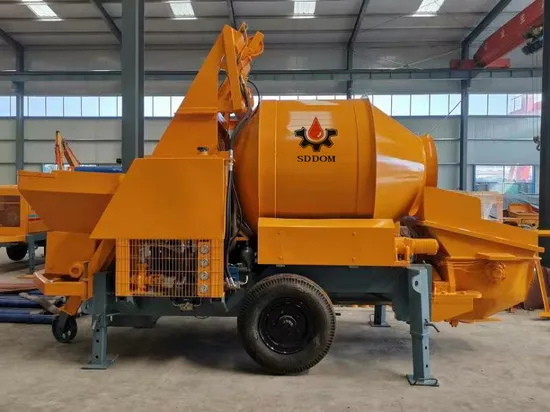

Hot Selling Concrete Machinery 30-40m3/H Cement Stationary Putzmeister Electric Trailer Concrete Mixer Pump for Sale

Product Description

Hot Selling Concrete Machinery 30-40m3/h Cement Stationary Putzmeister electric Trailer Concrete Mixer Pump for Sale Product Description

Technical Characteristics: 1.It is equipped with special pipeline.2.It can continuously complete horizontal and vertical conveyance of concrete along pipeline. 3.It is an ideal kind of existing concrete conveyance equipment. 4.It combines the production of ready-mixed concrete with pumping construction and uses coagulation. 5.The soil mixing truck carries out intermediate operation, which can realize continuous pumping and pouring of concrete.6.It is used for conveying concrete in large concrete projects. Detailed Photos

Product Parameters

Item	Fine aggregate Concrete Pump	Diesel Concrete Pump	Drum type diesel and electric concrete pump
Max.conveying capacity	25-40m3/h	15-90m3/h	30-80m3/h
Max.outlet pressure	12 Mpa	Diesel engine 176	10Mpa
Max.aggregate size	≤30mm	≤30mm	≤40mm
Motor power	45KW	80KW	37KW
Max.horizontal delivery	600m	1600	800m
Max.vertical delivery	180m	350m	400m
Borex Trip	Φ140*700mm	Φ140*1800mm	Φ180*1300mm
Conveying pipe inner diameter	Φ100(100)mm	Φ100(180)mm	Φ120(100)mm
Distribution valve type	S Valve	S Valve	S Valve
Dimension	4500*1500*1700mm	6000*2100*2260mm	4200*1960*1800mm
Weight	3000kg	2800kg	3000kg

Packaging & Shipping
Company Profile

FAQ

1.Are you original manufacturer?
A: Yes. We SDDOM are factory in construction machinery in China with whole concrete mixing / silo storage convey products you need.
2.What kind terms of payment can be accepted?
A: Normally we can work on T/T term or L/C term.
3.Which incoterm 2010 terms can we work?
A: Normally we work on EXW, FOB, CFR, CIF, DAP
4.What about the delivery time?
A: 7-30 days after receiving the deposit.
5.What about the warranty time?
A: 12 months after delivery generally.
6.What about the MOQ?
A: MOQ 1 unit
