Elf-Propelled Full Feed Rubber Track Combine Harvester 88HP Engine 500*90*51
| US$15,000.00-17,000.00 | 3 Pieces (MOQ) |
Basic Info.
Model NO.
4LZ-5.0Z
Power Source
Diesel
Harvest method
Picking
Drive Type
Vee belt
Transmission
Soft Shaft
Portable Harvester Type
Combine Harvester
Color
Red
Condition
New
Application Field
Agriculture
Warranty
1 Year
Engine
88HP
Engine Brand
Changchai
Rubber Track
500*90*51
Cutting Header
2.2m
Feeding Cacapity
5kg/S
Crops
Rice ,Wheat , Corn,Rapeseed
Loading Plan
One 40hc Container Load 3units
Transport Package
Nuke Package
Trademark
wincrops
HS Code
84335100
Production Capacity
10000units/Year
Product Description

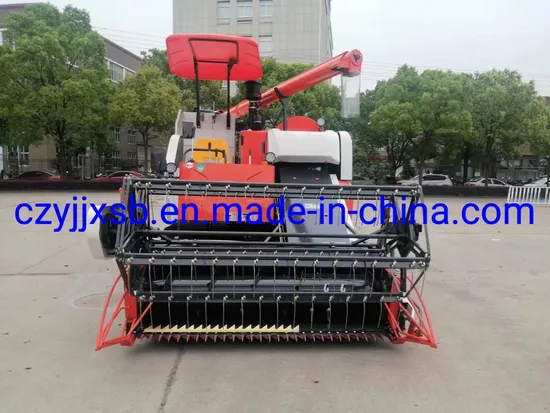

Product Description4LZ-5.0Z Combine Harvester, Rice Harvester,Wheat Harvester,Corn Harvester,Rapeseed Harvester,Soybean Harvester
4LZ-5.0Z Combine Harvester can harvest rice,wheat,corn,Rapeseed,Soybean.
Use big power diesel engine 88hp Changchai engine.High working efficiency
Use 2.2m wide cutting header, big chasiss 500*90*51 rubber track,Big grain tank.can working in muddy field
Detailed Photos
Product Parameters
| Model | 4LZ-5.0Z |
| Feeding Capacity (KG/s) | 5 |
| Weight (KGS) | 3800 |
| Main Standard Configuration | |
| Working Dimension L*W*H (mm) | 5460*3514*2830 |
| Ground Clearance(mm) | 290 |
| Travelling Speed(km/h) | 0.9-6.5 |
| Work Efficiency | 0.27-0.72 |
| Total Loss | Less than 2.0% |
| Total Imputity | Less than 1.5% |
| Total Breakage | Less than 1.5% |
| Diesel Engine | |
| Model | Changchai 4L88 |
| Type | Vertical, Water-cooling, 4*4 strokes Direct Inject |
| Rated Power/Rotating Speed | 88HP/2600rpm |
| Fuel Consumption(kg/hm2) | 12~30 |
| Fuel Capacity (L) | 130 |
| Gear Box& HST | |
| Gear Box | Hydraulic Gear Box |
| HST | 45CC |
| Rubber Track | |
| Size (mm) | 500mm*51*90 mm |
| Length of Ground Contact (mm) | 1700mm |
| Average Contact Pressure(kpa[kgf]/cm2) | ≤20Kpa |
| Header Platform &Conveyor Trough | |
| Grain Lifter | Divider |
| Cut Width | 2200mm |
| Size Reel Bat Dia. × Length (mm) | ∮900×1900mm |
| Adjust means of Reel Bat | Constant speed by hydraulic control |
| Conveyor Trough | Widen Conveyor Trough with Reverse Lever |
| Thresher& Separating Unit | |
| Threshing Type | Axial Flow, Beat Bar |
| Thresher Rotor | ∮620*2000 |
| Rotating Speed | 662/732 |
| Air Blow | Eccentric Fan, 3 Blow Forces |
| Area of Sieves (Low and Up Sieves) (m2) | 1.645 |
| Grain Tank | |
| Augers | Seed Augers, Impurity Augers, Unload Augers |
| Grain Tank | 1.5m³ |
| Grain Unloading | 360 Degrees Discharging Pipe |
| Others | |
| Cabin/Sun-roof | Sun-roof |
| Alarms | Water Temperature, Battery, Oil, Grain Tank, Jam of 2# Auger |
