Programmable Touch Universal Control Environmental Simulation Constant Temperature Humidity Climatic Dry Test Chamber

Product Description

Product Description Programmable Touch Universal Control Environmental Simulation Constant Temperature Humidity Climatic Dry Test Chamber meet with the below high temperature, with humidity test standard.
IEC60068-1(General and guidance for environmental test)
GB/T 2423.4-2008(damp heat, cyclic)
GB/T 1740-2007(Heat,humidity test for paint films)
IEC68-2-2(dry heat)
IEC 60068-2-3(Constant humid heat, alternating humid heat)
IEC61215(Damp heat double 85test)
IEC61646:2008(Damp heat double 85test)
MIL-STD-810G,Method 501.5, Procedure I, Storage
IEC 60068-2-30(Cyclic temperature with humidity test)

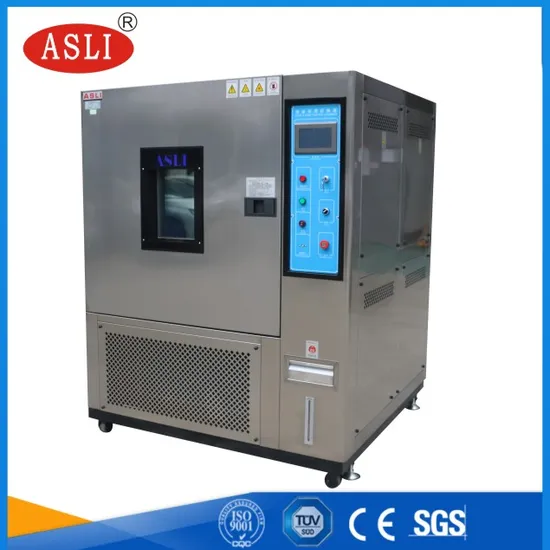

Climatic Temperature Humidity Test Chamber provide constant humidity and heat, complex high and low temperature alternating and other test environment and test conditions for electronic components, industrial materials and finished products in development, production and testing processes, applicable for electronic appliances, telecommunications, chemicals, hardware, rubber, furniture, toys scientific research etc
Product Parameters

Name	Temperature Humidity Test Chamber
Model	TH-150(A~F)	TH-225(A~F)	TH-408(A~F)
Internal Dimension WxHxD (mm)	500x600x500	600x750x500	600x850x800
External Dimension WxHxD (mm)	1050x1750x1050	1200x1900x1150	1200x1950x1350
Temperature Range	Low Temperature(A:25ºC B:0ºC C:-20ºC D:-40ºC E:-60ºC F:-70ºC) High Temperature 150ºC
Humidity Range	20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optiona , need Dehumidifier)
Temperature Rising/Falling Velocity	Temperature rising approx. 0.1~3.0ºC/min ; temperature falling approx. 0.1~1.0ºC/min; ( Falling Min.1.5ºC/min is optional)
Cooling System	Wind cooling or water cooling, (single segment compressor-40ºC, double segment compressor -70ºC)

Temperature Humidity Test Machine Specifications 1.Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of Temperature Humidity Controller Machine for Plastic.
2.control temperature&humidity well-distributed, precisely and steady.
3.Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
Detailed Images
Environmental Chamber with glass door (optional):
Sample Shelves:
Customized Temperature Test Chamber with Big Viewing Window
Customized Machine
The climatic chamber can also be used combined with vibration shaker
Our Company ASLI main product: climatic chamber, temperature chamber, Temperature Humidity Controller Machine for Plastic, walk in chamber, UV aging chamber, thermal shock chamber ,xenon chamber, xenon combined UV aging chamber, PCT chamber, HAST chamber, Vibration chamber, electrodynamic shaker, mechanical shock tester, climatic combined vibration chamber etc.
Exhibition:
Packing & Delivery
Our Service 1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 months.
FAQ Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about Programmable Touch Universal Control Environmental Simulation Constant Temperature Humidity Climatic Dry Test Chamber, please don't hesitate to send your requirements to us.
