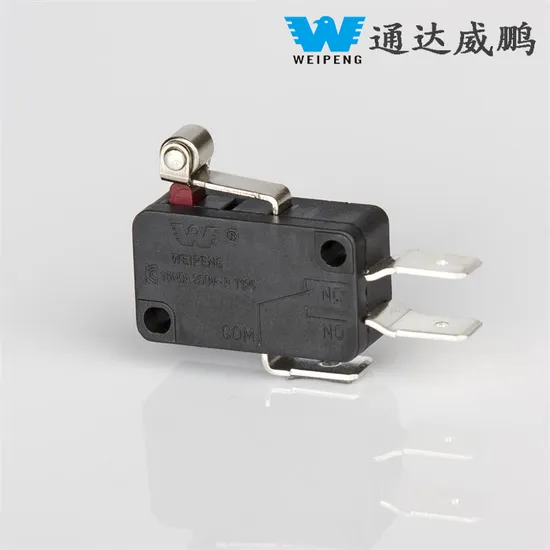

HK-14-16ap Micro Switch 10A 250V 5e4 TUV Certification ENEC En61058

Product Description

Characteristic & Using:
1. Sate, reliable basic switch
2. Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4. Long lite, high reliablity
5. A variety of contact terminals
6. A varnety of temperature degree
7. A variety of levers
8. Adopt themosetting plastic or themoplastic
9. Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and instument,electric motion tool etc. Contact Forms
Technical Specifications:

Operating Speed	0.1mm-1m/s	Operating frequency	Mechanical	600times/min
Insulation resistance	100MΩAbove DC500V		Electrical	30times/min
Contact resistance	25mΩ initial value	Withstand voltage	Non-connection wire	1000VAC
Protection degree	IP40		Every terminal	1500VAC
Operating temperature	-25~+80ºC	Impact	Durable	1000m/s²
Operating humidity	<85%		Misoperation	300m/s²
Vibration Misoperation	10-55Hz Amplitude 1.5mm	Life	Electrical	100,000 above
			Mechanical	1,000,000 above

_________________ PRODUCT DETAILS _________________
_________________OUR CUSTOMERS_________________
_________________OUR COMPANY_________________
Founded in 1990, Yueqing Tongda Wire Electric Factory is located in Yueqing Economic Development Zone, Zhejiang Province, southeast coast of China. It is a professional switch manufacturer integrating product R & D, production, sales and after-sales service. Its products cover more than 10 countries and regions all over the country and internationally.The products are widely used in TV sets, soymilk machines, microwave ovens, rice cookers, fruit Juicers and other household appliances, automobiles, electric tools and electronic companies with 28000 square meters of factory buildings ; The existing leading products are: micro switch series, waterproof switch series, rotary switch series, push button switch series, rocker switch seies etc., all of which have obtained UL, cUL, ENEC, VDE, KC, CE, CB, TUV, CQC, EX(explosion-proof cert) etc.; the annual production capacity of the instrument is more than 300 million switches.

________________OUR CERTIFICATIONS________________
_________________FAQ_________________
Q1.:Do you have any certification about your factory or products?
A1:Of course,we have strong system certified,like IATF16949,ISO14001,UL,TUV,VDE,Rohs,Reach and related approvals.
Q2.What is your sample policy?
A2:Free sample could be provided within 3days,but express charge should be paid by customer.
Q3. What is your terms of packing?
A3: Generally, we pack goods in neutral boxes and brown cartons,or customized if qty reached.
Q4. What is your terms of payment?
A4: In common,T/T 30% as deposit, and 70% before delivery.,if the amount >2000USD
Q5. How about your delivery time?
A5: Generally, it will take 3 to 15 days upon receipt of payment. The specific delivery time depends
on the items and the quantity of the order.
Q6. Can you produce according to the samples?
A6: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7. Do you test all your goods before delivery?
A7: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A8:1. We keep good quality and competitive price to ensure our customers benefit ;
2.Still take our customer's question be first,quick response and resolve ability if meet quality issue.
