Horizontal Ecnomical High Precision Flat Bed Automatic Metal Cutting CNC Turning Lathe Machine

Product Description

Porduct description:
1.Sheet metal design aesthetics, and convenient operation
2.Bed frame are made of high quality resin sand, aging rail super audio quenching, good wear resistance
3.Rail laminating process, improve the wear and equipment life
4.Precision rolling screw vice transmission, three-point positioning double support, high accuracy
5.Centralized lubrication unit, the machine is fully lubricate all moving parts, extended equipment life
6.A variety of clamping options.
Fit Range

1.Have the function of turning cylinder,taper,arc,extrenity,cut through,bore ream,make kinds of screw thread
2.Fit for auto and mobile part,valve,electric tool,hardware meter ect,whosesurface crassitude is with rat.

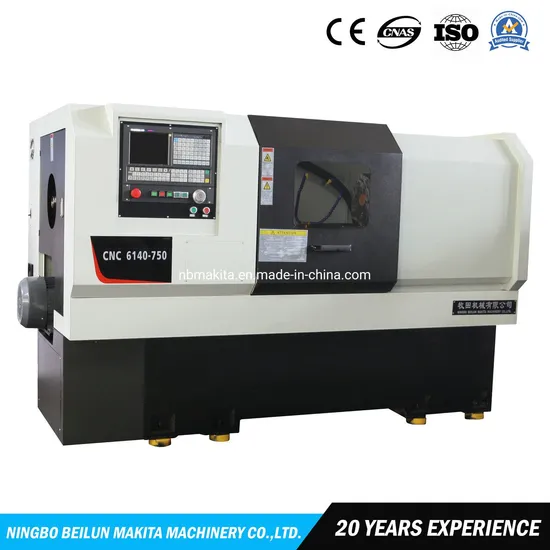

Product show
Specification

Item	Parameter	CNC6140
Capacity	Max.swing over bed	Φ470
	Max.swing over slide	Φ210mm
	Max.workpiece length	700mm
	Bar diameter	50
Spindle	Maximum spindle speed	2200r/min
	Dia of spindle bore	Φ62mm
	Spindle taper	MT6
Rapid traverse	X-axis rapid traverse	6m/min
	Z-axis rapid traverse	8m/min
Axis stroke	X-axis limit travel	290mm
	Z-axis limit travel	750mm
Tailstock	Sleeve diameter	Φ65mm
	Sleeve travel	100mm
	Sleeve taper	MT4
Tool	Tool post/turret	Four station turret LDB4-C6140(81)
	Shank size	25X25mm
Others	Min setting unit	X axis:0.001mm Z axis:0.001mm
	Spindle motor power	standard motor 7.5KW
	Dimension(L*W*H)	2550X1420X1500mm
	Weight/aprroximate weight	2000KG

Our Company
Makita Machinery Co., Ltd. was founded in the south wing of the Yangtze River Delta, Ningbo Beilun Development Zone, and the creation of "Makita" brand. Enterprise has a group of experts from Japan and China after the reform and develop a deeper knowledge of the machine honed technical team, in the tradition of Japanese machine tool manufacturer century technology, innovation, doing fine and stronger.
Follow the national Thirty-five year plan for higher goals China's equipment manufacturing industry proposed by the company in due course of potential, have developed products are gang tools series, turret series slant bed precision CNC lathe ,with C-axis,Y-axis function turning centers; stand-alone automated robotic combination of CNC lathes; and for customers tailored, flexible production line network intelligence.
Enterprise integration " One Belt and One Road " strategy into a strong force, through 2014 to 2015 two years of efforts the company successfully design and production or transformation of a number of intelligent, unmanned production lines for many Japanese-funded enterprises. Enterprises regard quality as the life ,carefully crafted ,strictly internal control have passed the ISO9001 quality management system certification, CE certification machinery products, we have obtained total of 100 patents including multiple invention patents.
Thanks to long-term and friendly cooperation enthusiasm throughout the new and old customers at domestic and overseas in recent years, the company's business booming, the products sold throughout the country and exported to Europe, America, Southeast Asia, the Middle East and other countries, to obtain the customer's praise.
Packing & Delivery
Packing Details : International Heat Treatment Standard Export Wooden Package.
workbench and the guide surface rust-proof oil daub, and oil film paper cover.
Delivery Details : 15-60 days after PI confirmed and deposite received.
