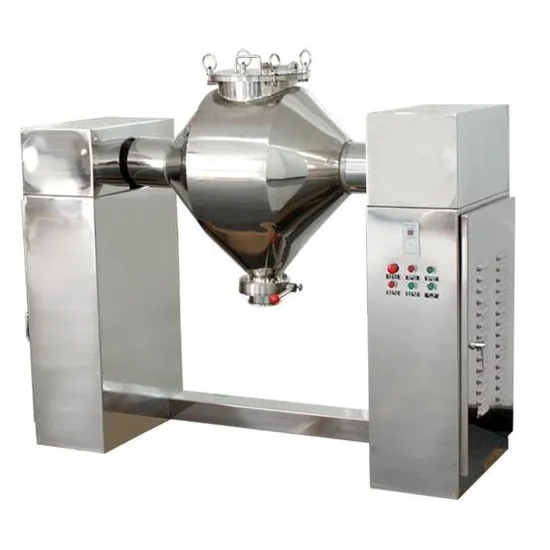

Cw-4000 Stirring Double Cone Mixer
| US$1.00-30,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CW-4000
Application Area
Pharmaceutical
Certification
CE, ISO, GOST, SONCAP, CCC, API
Condition
New
Stirring Type
Spiral
Working
Shear Mixer
Barrel Volume(L)
4000
Mixing Motor
15
Stirring Motor
5.5
Mixing Rotary Speed (Rpm/Min)
6
Stirring Rotary Speed(Rpm/Min)
20
Mixer Type
Double Screw Cone Mixer
Layout Type
Horizontal
Mixing Drum Shape
Double Cone
Operating type
Cycle Operating
Transport Package
Seaworthy
Specification
GMP
Trademark
SPM
Origin
Shanghai
HS Code
8474390000
Production Capacity
4000L/Load
Product Description
Cw-4000 Stirring Double Cone MixerModel CW-4000
Barrel Volume(L) 4000
Mixing motor 15
Stirring motor 5.5
Mixing rotary speed (rpm/min) 6
Stirring rotary speed(rpm/min) 20
Overall dimension 4800×1300×3800
Features:
This machine can rapidly mix such materials as easy clot and with certain water content, having fast mixing speed and good mixing effect. Inner of this machine is of new type sealing structure, during mixing, it is free of pollution, with simple structure and convenient operation and maintenance.
Main Application:
Our company develops CW series stirring mixer under absorption of foreign new technology, based on W series double cone mixer, this machine adds stirring unit, which can be used for material mixing in industries as pharmacy, foodstuff, chemical industries as pharmacy, foodstuff, chemical industry and feedstuff etc.
Technical Parameter:
| Model | Barrel Volume(L) | Mixing motor | Stirring motor | Mixing rotary speed (rpm/min) | Stirring rotary speed(rpm/min) | Overall dimension |
| CW-50 | 50 | 1.1 | 0.75 | 20 | 60 | 1500*450*1200 |
| CW-100 | 100 | 1.5 | 1.1 | 20 | 60 | 1550*550*13500 |
| CW-200 | 200 | 2.2 | 1.1 | 20 | 60 | 1800*700*1500 |
| CW-300 | 300 | 2.2 | 1.1 | 20 | 60 | 2100*760*1760 |
| CW-500 | 500 | 3 | 2.2 | 20 | 60 | 2320*950*1920 |
| CW-1000 | 1000 | 5.5 | 2.2 | 10 | 40 | 2450*1050*2500 |
| CW-1500 | 1500 | 7.5 | 4 | 10 | 40 | 2900*1300*2700 |
| CW-2000 | 2000 | 7.5 | 4 | 8 | 30 | 3000*1400*3100 |
| CW-2500 | 2500 | 11 | 5.5 | 6 | 20 | 3600*1400*3200 |
| CW-3000 | 3000 | 11 | 5.5 | 6 | 20 | 4000*1500*3500 |
| CW-4000 | 4000 | 15 | 5.5 | 6 | 20 | 4800×1300×3800 |
| CW-5000 | 5000 | 15 | 7.5 | 5 | 20 | 5400×1300×4000 |
| CW-6000 | 6000 | 17.5 | 7.5 | 5 | 20 | 5650×1300×4380 |
