Air Receiver Storage Tank Air Compressor Part Stainless Gas Tank

Product Description

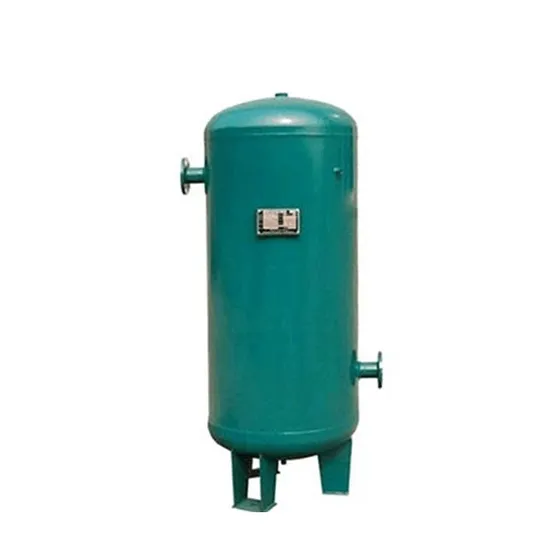

air receiver storage tank Air compressor part stainless gas tank

1. air compressor tank
2. kind: air tank
3. with high quality and low price
4. Material:stainless steel
5. air deliver: 1m3/min
6. working prssure: 7bar
7. welding: Automatic argon arc welding
8. cetification:ISO9001,CE,
9. pack: air tank wooden box
Specification of air compressor tank

Spec design temperature °C high H1 dimension Φ air inlet air outlet support lief valve connector Nozzle of dyain valve volume H2 DN H3 DN D d 1 0.3/0.8 110 1594 550 642 65 Rp1½ 1242 65 Rp1½ 400 20 Rp3/4 R1/2 2 0.3/1.0 1594 642 1242 3 0.3/1.3 1598 644 1244 4 0.3/1.6 1598 644 1244 5 0.6/0.8 110 1905 700 680 65 Rp1½ 1550 65 Rp1½ 490 24 Rp3/4 R1/2 6 0.6/1.0 1907 681 1551 7 0.6/1.3 1909 682 1552 8 0.6/1.6 1907 681 1551 9 1.0/0.8 110 2365 800 730 80 Rp1½ 1960 80 Rp1½ 560 24 Rp1 R1/2 10 1.0/1.0 2367 731 1961 11 1.0/1.3 2367 731 1961 12 1.0/1.6 2367 731 1961 13 1.5/0.8 110 2727 900 736 80 Rp2" 2296 80 Rp2" 630 24 Rp1 R3/4 14 1.5/1.0 2729 737 2297 15 1.5/1.3 2727 736 2296 16 1.5/1.6 2731 738 2298 17 2.0/0.8 110 2782 1000 761 80 Rp2" 2321 80 Rp2" 700 24 Rp1¼ R3/4 18 2.0/1.0 2786 763 2323 19 2.0/1.3 2782 761 2321 20 2.0/1.6 2786 763 2323 21 2.5/0.8 110 2834 1100 787 80 2347 80 770 24 Rp1¼ R3/4 22 2.5/1.0 2836 788 2348 23 2.5/1.3 2836 788 2348 24 2.5/1.6 2836 788 2348 25 3.0/0.8 110 2944 1200 872 100 2432 100 906 24 Rp1½ R3/4 26 3.0/1.0 2946 873 2433 27 3.0/1.3 2946 873 2433 28 3.0/1.6 2980 890 2450 29 4.0/0.8 110 3056 1400 933 100 2493 100 1050 24 Rp1½ R3/4 30 4.0/1.0 3090 950 2510 31 4.0/1.3 3056 933 2493 32 4.0/1.6 3090 950 2510 33 5.0/0.8 110 3746 1400 933 125 3033 125 1050 24 Rp2 R1 34 5.0/1.0 3780 950 3050 35 5.0/1.3 3746 933 3033 36 5.0/1.6 3780 950 3050

The function of the air tank
Air tank can store a certain volume of compressed air, when the air compressor shut down, after a short period of time ,the system also can meet the demand of air supply and complete the necessary air program operation. And it can eliminate the pressure pulsation of the air compressor, make the air pressure stable.
Our air tank can be custom,we will design and produce as your requirements including the material ,size and volume.

1. Introduction

a. Carbon Steel Storage Tank is widely used in industries such as petroleum, chemical industry, paint & printing ink, pharmacy, food etc to store liquids or powders.

b. It generates two kinds: Horizontal and Vertically

c. Bewellcn company provides various stainless steel storage tanks. If required, it can be jacketed for heating or cooling, pressurized or vacuumized or with agitator etc.

d. We also have rich application experience in measurement and control of the materials in the storage tanks

2. Technical Parameter
Volume: 1-200 m3.
Seal: Mechanical Seal, Packing Seal, Hermetic Seal, Rubber Lip Seal.

Company information
Hongkong Jiubei Industry limited manufacture and distribute all kinds of air compressor parts since 2000, accumulated A lot of experiences for air compressor system. We can solve any technical problems you may encounter with your air compressor. Also most of compressor parts can be provided by us.
in the begining of 2012, we devote to research and development of oil free compressor parts, now, the full serial of
oil free air compressor parts can be offered from our stocks.
we have our own airend rebuilding workshop, can manitain and repair more than 100 airend per month.

After-sales service
1. provide installing guide
2. any quality problem during warranty, we will change a new one for you for free
3. any needs call us at any time (24H/7D)
Our services
24 hours a day, 7 days a week
1-stop purchasing
Cheap, fast and efficient
adequate stocks
provide install instruction and guide

FAQ
1. What's Minimum Order Quantity of your air compressor part?
the MOQ is 1pc, need you pay for the delivery cost.
2. What's kind of your packaging for the air compressor part?
neutral packing or brand pack as your requirement
3. Could I get some samples? How could i pay the sample payment?
yes, we can provide sample, but not free.
payment: paypal, westunion ,TT
4. How long is your Delivery Lead Time ?
If there is stock, the lead time is about 2 WORKING DAYS after we get the payment, if need to be produced, it depens.
5. Could you Calculate the shipping cost for me?
Yes, we are honored to do that for you! Before the freight , please well let us know which seaport or airport near your place.

6. what's the delivery way?
shipping way: air freight, express, sea
