Dust Filter Multi-Route Spark Diverter Safety Protection in Spinning Mills

Product Description

Blow room Mocro dust filter multi-route spark diverter Safty protection in spinning mills
119D multi-route spark diverter is an anti-fire equipment of easy installation, flxibilit configuration, reliable use and adapting to complex environment. This product has been widely used in the spinning mills in the production line of the blowing-carding, rolling of opening and cleaning procedure and dust filtration system. 119D multi-route spark diverter can detect tiny sparks and embers in the textile fibers, other materials conveying flow or dust, Once the diverter detects sparks it will alarm immediately, stop the fan and switch on the diverter to ensure the safety of production.
Installation of host machine and detector
119D is consist of host machine and spark detector. The host machine is generally installed on the wall, it can be fastened by M8 expansion bolts. Lt uses the power carrier wave communication between the host machine and the spark detectors, installing the communication network only needs two wires. lt has the characteristics of long distance of signal transmission, easy and reliable structure.

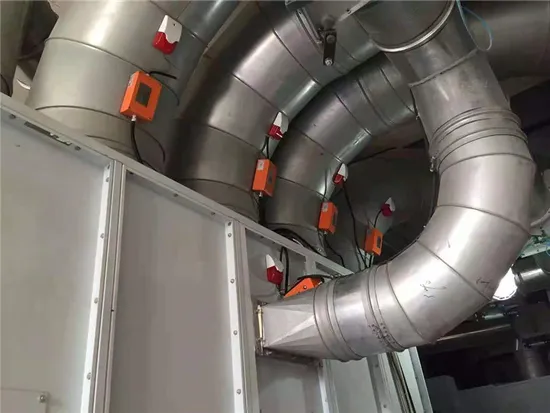

When installing, make a # 22mm hole in the cotton conveying pipe (hole requirements round, smooth without burrs), make the inspection window of the detector face to the hole. Because of the detector with strong magnet, it can be adsorbed on the metal pipe.
Specifications
Sensitivity: Can detect spark which larger than Ø1mm ,visual angle is more than 90 degrees
Response time: Less than 300ms
Power: AC220V+10%
Pneumatic pressure: 0.6-0.8MPa
Alarm sound level: >90db
Corresponding distance: Within 200 meters
Others diverter:
Shipment and loading:
