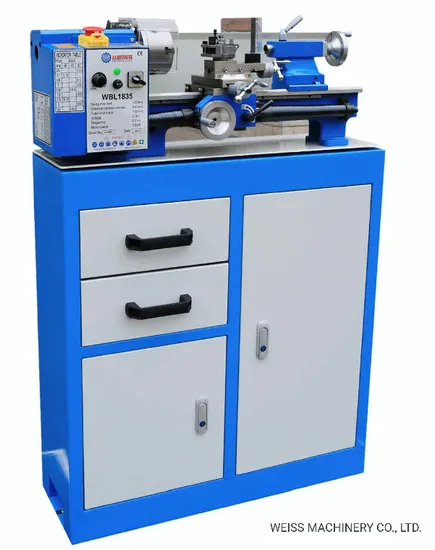

Weiss Wbl1835 Hot Sell Light Mini Lathe for Home Use

Product Description

Recommended Products
WBL210D WBL250F WBP250F
1. We strongly recommend this powerful valuable Mini Metal Lathe with 3/4 HP Brushless Motor provide variable speeds from 100 - 2250 rpm

2. Amazing size but packed full of features, this strong machine could provide the perfect introduction to those wanting to start metal turning for the first time.
3. This mini lathe is small enough to fit into the corner of the workshop and light enough to be truly portable. The capacities, 177mm diameter and 355mm between centres, are surprisingly large for a machine of this overall size.
4. This mini lathe is equipped with features found on larger lathes including 100 three-jaw chuck with external jaws, a turret tool post, full featured carriage and apron assemblies, threading dial and quick-lock tailstock

Want TOP quality? Come to WEISS, you can get the excellent value!

SPECIFICATIONS		Standard Accessories	Optional Accessories
WEISS MODEL	WBL1835
ITEM NO	10103083	3-Jaw chuck (100mm)	Steady rest(0-45mm)
Distance between centers	Ø350mm	4-way tool post	Follow rest(0-35mm)
Swing over bed	Ø180mm	Chuck guard	Face plate
Swing over cross slide	Ø110mm	Splash guard	4-jaw chuck(100mm)
Width of bed	82mm	Chip tray	Leadscrwe cover
Taper of spindle bore	MT3	Tool& Toolbox	Tool post cover
Spindle bore	20mm		Sets of metal change gear(14pcs)
Number of spindle speeds	Variable		2-axis DRO
Range of spindle speeds	100-2250mm		3-axis DRO
Range of inch threads (imperial version)	12-52 T.P.I (18)
Range of metric threads (metric version)	0.5-2.5mm (9)
Top slide travel	55mm
Cross slide travel	65mm
Tailstock quill travel	60mm
Taper of tailstock quill	MT2
Motor (brushless)	750W

Detalis
Brushless Motor
· WBL1835 has 3/4 HP POWERFUL brushless motor with silent running. Compare to old DC motor with brush, no need to change the carbon brush any more.
· High quality electronics used throughout machine for long term reliability
· Brushless motors has high efficiency, low noise (quiet), smooth operation, long life, low maintenance costs. Especially with low energy consumption brings better economic benefits to users

1: Lathe digital speed readout tachometer on face of machine
2: Switch-off visible safety chuck guard
3: Guideway induction hardened and precision ground for long life
4: Inch & Metric thread, Left & Right hand thread cutting is avaialbe
5: Enclosed electric parts protective cover provide safety from the chips and dust
6: Change gears with smooth and silence running
3-Jaw Self-centering chuck Imperial/Metric threading dial Quick-locking tailstock
Tool& Toolbox
Factory and Delivery
Package
Certificate
FAQ
1. What is your Warranty? 1 year, including accessories. We always offer professional technical support and good after sale service.
2.Can we pay by L/C or others?
Yes ,you can make the payment by T/T, Paypal etc.
3. What is your payment terms?
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.
4. What is your Lead time?
It depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
5. Do you have CE certificate?
Yes, we have CE certification, machine quality is guaranteed.
6. Can we purchase the accessories only?
Yes, we sell accessories of our machine as well.
