Small Thin Metal Plate Small Metal Parts Making Working Area 600*900mm High Precision CNC Fiber Laser Cutting Machine

Product Description

Small Thin Metal Plate Small Metal Parts Making Working Area 600*900mm High Precision CNC Fiber Laser Cutting Machine
Product Description

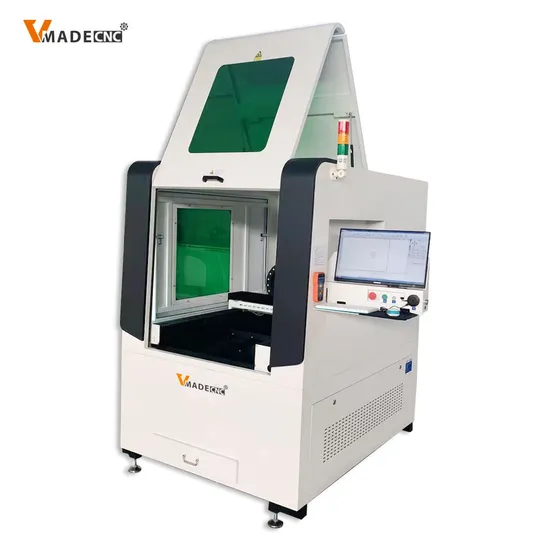

VLF6060 mini metal laser cutter adopts fiber laser generator, fully enclosed design, environmental friendly in all types of sheet metal cutting, which is a compact entry level fiber laser cutting system for hobbyists in small business with metal signs, metal tags, metal logos, metal letters, and metal jewelry, now the hobby fiber laser metal cutting machine for sale at a low price.
1.The VLF6060 mini metal laser cutter Widely used in glasses, electronics, appliances and other precision machinery, hardware, microelectronics industry
2.600 ° heat treatment and 24 hours with the furnace cooling, 8 meters gantry milling finishing, precision welding protection of carbon dioxide, to ensure the normal use for 20 years without deformation
3. Rail installation with precision collimator test, the accuracy is less than 0.01mm
4. Taiwan grinding screw drive.
5. High precision, speed, cutting surface smooth
6. Configure Yaskawa servo system inertia in driving high accuracy
7. Fully enclosed protective Cover
Details
1.The equipment adopts inward opening side sliding doors, which effectively reduces the door opening height and is suitable for lower floors.
2. The design of the operating screen shaft is convenient for the operator to debug the parameters. The software adopts general-purpose software, and the cutting path is automatically optimized to reduce the difficulty of use. It is compatible with multiple file formats dxf, Gerber, etc.
3. The equipment adopts the upper air shower structure, which makes the upper part of the equipment produce downward air pressure, which effectively controls the dust on the upper part of the equipment, and also reduces the impact of dust on the moving parts. It is better to match the suction device of our company.
4.The equipment platform adopts the marble platform to eliminate the vibration error when the linear motor moves. The marble is also insensitive to temperature deformation and reduces the impact of the weather on the equipment.
5.The equipment guide rail adopts a self-designed double-layer sealed structure to effectively prevent dust from affecting the linear motor and guide rail.
6.The equipment adopts the laser customized by our company, and the laser is optimized according to the cutting process, and the cutting effect is comparable to the imported laser.
7. The equipment adopts the laser head customized by our company, and adjusts the laser head parameters to achieve the optimal plan for cutting high-reflection materials
Product Paramenters

Model No.	VLF16060
Working Area	600*600mm
Fiber Laser Power Source	Raycus/IPG/MAX
Laser Power	1000W/1500/20002/3000W
Laser Cutting Head	Raytools
Motor and Driver	Japan Yaskawa/Panasonic Servo Motor and Driver
Control System	Cypcut Control System
Max Running Speed	80m/min
Max Acceleration	1G
Transmission	APEX Double Rack Gear
Guide Rail	Taiwan HIWIN Guide Rail
Repeat Positioning Accuracy	+/-0.02
Reducer	France Motovario Motor Reducer
Electric Parts	France Schneder
Pneumatic Parts	SMC
Machine Bed Weight	3000kg with Special Heat Treatment (Erosion-Proof)
Optional Exchange Platform	3m Exchange Platform
Optional Rotary	3m Rotary

Cutting Parameters

Samples
Package
Factory Show
Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in high-tech zone, Jinan City, Shandong Province of China. It is a professional team which specialized in Optic, Electricity, Mechanics, and R&D field. Vmade keep delicate and attentive attitude on every step and always keep to learn the most advanced technology and create more humanized products to all our customers. These years, Vmade has sold their products to all over the world. Such as USA, Canada, Brazil, Russia, England, Australia, more than 60 countries and do OEM service to more than 15 dealers and distributors. Vmade is warmly welcomed by customers with their continuously enthusiasm, Frist-Class before/after sales service, efficient reaction and the perfect machine quality.The name of Vmade originate from most of the buyers' expectation. "V", means the VIP design and production which specially customized to each client; "made", means we use hundred percentage of our attention to focus on every order, finalized all clients' entrust with perfect products which are elaborate made.Vmade CNC, keep innovation, with high passion, to provide perfect project for every client. Welcome join Vmade, we will never let you down!
After-sales Service
1. Professional and free after-sales training
Our company has the professional after-sales technical team , providing customers prompt door-to-door or online technical guidance, which can ensure customers are skilled in the equipment application in a short time . At the same time , after-sales technical team would visit customers regularly ,asking customers the using of equipment and upgrade the software of equipment for customers.
2. After-sales outlets are all over the world
Our company has global customer service center , it has 16hours/day online customer service, which can solve all kinds of problems for domestic and foreign customers, our customer service will feedback problems to technical department and productive department,which would give you a satisfactory process of solving problem , ensuring constantly creation of money for you.
3. The feedback of customer satisfaction survey
Company 's after-sales service and technical department will visit customers regularly , inquiring your degree of satisfaction about the equipment and service , we would form proposal according to customer's feedback, the aim of it is finding continuous improvement.
4. The warranty commitment of equipment
The machine's warranty is on three years( not including optical devices and quick-wear parts), except that ,control software is free to upgrade . At the same time ,we guarantee that we will give you the most satisfactory answer for your question whether it is inside or outside of the machine..
FAQ
1.What is fiber laser?
A fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped. This is done by coupling the
radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power.
What's material can fiber laser cut?
All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
2.Which fiber source does Vmade applied?
IPG - Made in USA.
Raycus- Made in China;
Maxphotonics - Made in China;
3.What is Vmade Fiber laser advantages?
>Excellent beam quality (light-concentrating beam from optical fiber)
>Simple , compact, electrically and optically efficient (small footprint and low power consumption by fiber amplification)
>Compatibly powerful and reliable (realized by high brightness, high power semiconductor lasers as pumping light)
>Maintenance free (the entire optical fiber setups without lenses, mirrors)
>multilingual, more than 11 foreign languages
>3 years warranty .
4.What's the function of fiber laser?
Fiber Laser is only used to cut metals like Stainless Steel, Carbon/Mild Steel, Galvanized Steel, etc. Non-metal is not ok.

5.What's the max. cutting thickness?
Cutting thickness is related to laser power.
1000W: 5mm stainless steel, 12mm carbon steel
2000W: 10mm stainless steel, 18mm carbon steel
3000W: 10mm stainless steel, 20mm carbon steel, 10mm aluminum, 7mm brass, 4mm copper
4000W: 12mm stainless steel, 22mm carbon steel, 10mm aluminum, 10mm brass, 6mm copper
Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflection sheet metal.
Please tell us what you need
1.What is your working size?
2.What material do you need to cut/engrave?
3. What is the thickness and size of each materials?
4.What is your business industry? signage or art craft works or what else ?
5.What is your full name,email,company name,website and contact number ?
If you have any questions, Please contact us.
