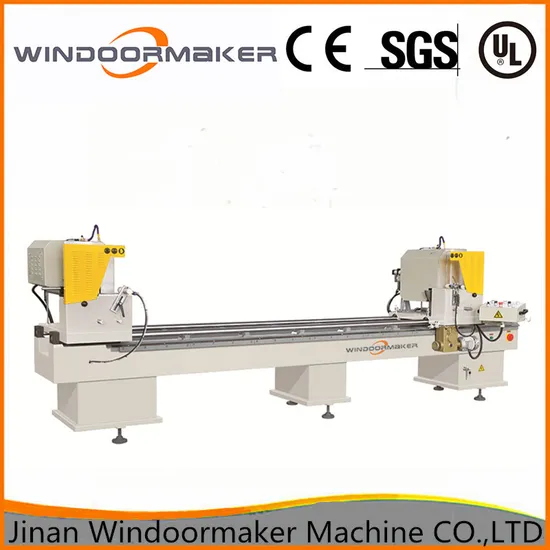

Vinyl Plastic Window Profile PVC Window Making Machine of Cutting Saw Mitre Saw

Product Description

Product Description
Specification:
This machine is designed for cutting aluminum and PVC profile at the angles of -45°, +45°, 90°. Its carbide cutters are directly fixed on motor shafts and can swing freely to meet processing demand, which give the machine high cutting speed and accuracy. Each saw head can operate not only independently but also cooperate with each other to accomplish profile processing. Air-hydraulic cylinder ensured the stable speed adjusting and saw blade working. Customized with digital display , the display can auto add profile height when cutting 45 degree.

Product Parameters
Technical Parameter:

Power supply	Made to order
motor power	3kW(1.5kW*2)
Spindle Rotary Speed	2800 r/min
Operation air pressure	0.5~0.8MPa
Air consumption	200L/min
Cutting length	45° max 3700mm Min 550mm 90° max 3700mm Min 400mm
Min.Cutting length	580mm(double-head)
Cutting width	120mm
Cutting height	200mm
Cutting angle	-45°,+ 45°, 90°
Cutter feeding speed	0~3 m/min Stepless speed regulating
Cutting profile surface plane	≤0.10mm
Cutting angle tolerance	Ra12.5 μm
Saw blade specification	φ450mm×3.2mm×φ30mm Z=80
Dimension	4500×1300×1450mm
Weight	1600kg

Certifications
Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.
