Vh-500 High Efficiency Mixer Machine for Powder

Vh-500 High Efficiency Mixer Machine for Powder

US$4,200.00 1 Piece (MOQ)

Basic Info.

Model NO.
VH-500
Application
Powder, Pharmaceutical
Application Area
Pharmaceutical
Certification
CE
Condition
New
Control System
Button Control
Cooling Method
Air Cooling
Heating Method
Electric Heating
Main Material
Stainless Steel
Mixing Capacity
500-1000L
Safety Features
Safety Lock
Speed Control
Dual Speed
Speed Range
30-39 R/min
Stirring Type
Powder Mixer
Temperature Control
With Cooling System
Working
Powder Mixer
Barrel Capacity
500L
Feed Volume Coefficient
0.4
Power
2.2kw
Max Feed Weight
250kg
Mix with Time
6-10min
Usage
Powder Mixer
Dimension(L*W*H)
2760*1070*2100mm
Video Outgoing-Inspection
Provided
Standard
GMP/CE
Material
304 Stainless Steel
Operation
Easy to Operate
Feature
Automatic Operate, Low Noise
Warranty of Core Components
1 Year
Agitation Speed
12
Mixer Type
Powder Mixer
Transport Package
Export Standard Packing
Specification
600kg
Trademark
Hongtai
Origin
Shanghai, China
HS Code
847439000
Production Capacity
500L

Packaging & Delivery

Package Size
276.00cm * 107.00cm * 210.00cm
Package Gross Weight
700.000kg

Product Description

VH-500 Efficient MixerPerformance

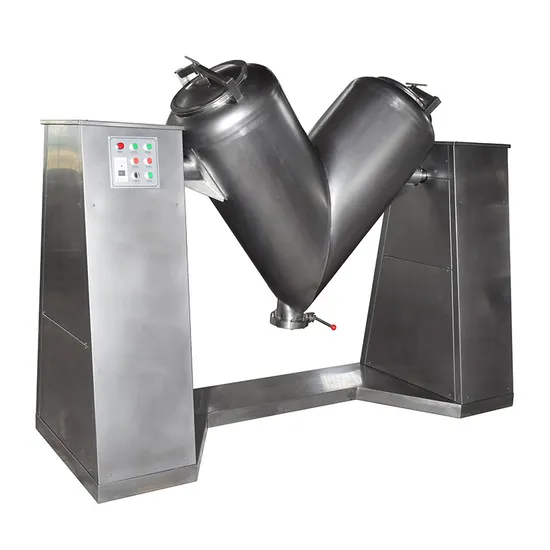

This machine has the following distinguishing features, no blind eagle in the cylinders, and no accumulation of materials, high speed, and short mixing time. With the body made of stainless steel and both inner and outer walls polished, the cylinders have elegant appearance. The charging of materials can be made either by manual operation or through vacuum suction. For discharging, rotating valves and rapid swivel heads are adopted. This mixer is applicable for mixing powdery or granular materials in pharmaceutical and other industries. It consists of two V-type cylinders of different altitudes, and through mechanical transmission the materials in these cylinders are made to move back and forth and turn over again and again, thereby achieving the goal of uniform mixing. Technical Parameters
Type Barrel Capacity (L) Feed Volume coefficient Max Feed weight (KG) Agitation speed Mix with time (min) Motor Power (kw)
VH-5 5 0.4 2.5 60 6-8 0.25
VH-8 8 0.4 4 60 6-8 0.25
VH-14 14 0.4 8 46 6-8 0.37
VH-30 30 0.4 15 20 6-8 0.55
VH-50 50 0.4 25 20 6-8 0.75
VH-100 100 0.4 50 15 6-8 1.1
VH-200 200 0.4 100 12 6-8 1.5
VH-300 300 0.4 150 12 6-10 1.5
VH-500 500 0.4 250 12 6-10 2.2

Product pictures

Hot products
Packaging & Shipping
one piece packed in a carton
inner package pearl wool
outer package export carton
packed by belt
Company Information
Jinhu Hongtai Machinery Co. Limited, located is a professional manufacturing and trading company of pharmaceutical machinery. We are located in Jiangsu. All equipment has passed ISO9001 quality management system certification and CE certification. We provide more than 100 models of 8 categories such as material processing machinery, medical packing machinery, label machinery, laboratory small equipments & preparation machinery , to supply ideal equipments and instruments for pharmaceutical factories, scientific research institutions, hospitals and laboratories. By stable quality, reasonable price and good after-service, we have established permanent relationship with customers all over the world, such as Europe, North America, South America, the Middle East, etc. With the business philosophy of quality first, customers supreme, we look forward to the sincere cooperation with you and the mutual development.
Our Services
1.One year guarantee for whole machine
2.24 hours technical support
3.Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4.After a year,we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5.We can also provide training service which help opeators handle the machine well.
FAQ
1. What about your baling machine quality?
Our factory has more than 10 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported into many countries and areas; already got customer's good reputation.
2. What about your baling machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
