Fully Automatic Good Quality Toilet Tissue Paper Core Making Machine

Product Description

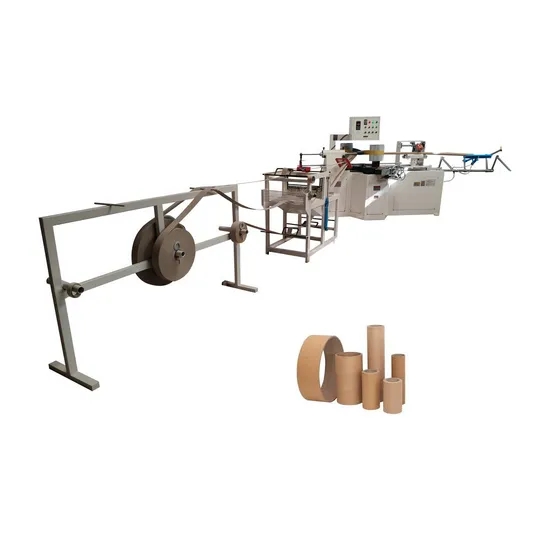

XY-SD-B Automatic Roll Core Making Machine
Function & features:
1.Frequency conversion timing, high precision of pipe.
2.Automatically withdraw knife or insert knife to cut pipe without stopping machine.
3.Make other size of core is very easy to change the spare parts.
4.Not hot and dry during the forming of product, the consumption of equipment is less.
5.The composed parts are of high rigidity, equipment is stable without shake when rolling core with high speed.
6.The finished pipes are used in the toilet paper ,plastic firm and textile, lamps etc.
Technology Parameter:
1.Production Speed: 15~20 m/min
2. Roll Core diameter:30-100mm
4.Installed power: 4.5Kw (380V 50Hz)
5.Overall Size of Equipment (L×W×H ):9000×4000×1650mm
6.Weight of Equipment: 1600kg
7. Cutting length: 650-3000mm
Detail pictures:
