High Precision Vertical X6432 Universal Swivel Head Milling Machine

High Precision Vertical X6432 Universal Swivel Head Milling Machine

US$8,000.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
X6432
Structure
Bed Type, Elevator, RAM, Worktable
Milling Cutter Type
Vertical and Horizontal Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Plywood Shell
Specification
2070× 2025× 2020
Trademark
Schuler
Origin
Shandong China
HS Code
8459590000
Production Capacity
500piecse/Year

Product Description

High Precision Vertical X6432 Universal Swivel Head Milling Machine

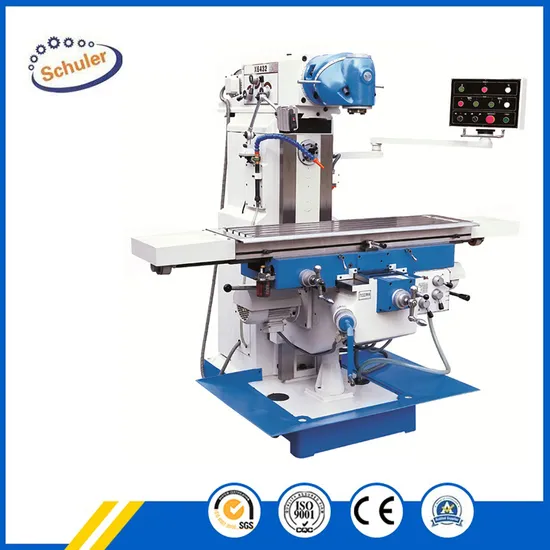

Product picture:
Universal Milling Machine Performance Characteristics:
1.Vertical and horizontal multifunctional milling
2.This milling machine with universal milling head which can swivel 360 degress,can be add slotting head.
3.Table swivel 45°, Multi-angle processing.
4.Gear drive , Auto feed on two axis,motorized lift on Z axis
5.Hardened on x, y, z axis,Rectangular guideway, stable, good rigidity.
6.Ball screws can be ordered instead of standard leads screws at special request.
Application:
1, Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling.
2, Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear.
3, Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Universal Milling Machine Technical parameters:
Specification Unit X6432
Table size mm 1320x320
No. of T slot no 3
T slot Size ( Width ) mm 14
Centre distance of T slot mm 95
Max. load of Table kg 300
swivel angle of table degree ±35º
table Longitudinal travel(manual/auto) mm 1000
table Cross travel (manual/auto) mm 300
table Vertical travel(manual/auto) mm 400
Spindle taper ISO50
spindle speed /step -- Vertical rpm 58-1800/
--Horizontal rpm 60-1750/
swivel angle of swivel head degree 360º
Distance from vertical spindle axis to column surface mm 220-720
Distance from vertical spindle nose to table surface mm 170-570
Distance from horizontal spindle axis to table surface mm 0-400
Distance from horizontal spindle axis to ram bottom mm 175
ram travel mm 500
Longitudinal/cross feed mm / min 22-420(X), 22-393(Y)
Vertical feed /step mm/min 10-168(Z)
Longitudinal/cross rapid speed mm / min 1290(X),1205(Y)
Rapid Traverse vertical mm/min 513(Z)
main motor kw 4
X/Y/Z) feed motor kw 1.1
coolant motor kw 90W
overall dimension cm 207x202.5x202
Machine weight kg 2480

Brand Image:
As a professional manufacturer of milling machines, we want our customers to know of our commitment to providing the latest products to all customers.
Universal Milling Machine Details:
Universal Milling Machine Package delivery:
Company and Certification Information:
Shandong Schuler CNC Machinery Co., Ltd. is a professional manufacturer of vertical machining center, high speed machining center, gantry machining center, vertical milling machine, universal milling machine, turret milling machine, lathe, CNC lathe, radial rocker drill, metal band sawing machine. enterprise. The company is located in Tengzhou City, Shandong Province, with convenient transportation and industrial intensive. The company integrates research, development, design, manufacturing, sales, installation and maintenance of CNC machine tools. With high-level production equipment technology and excellent, high-quality staff, providing high-quality product quality and service, the products sell well in domestic and foreign markets.
Zhongzheng is a person, and integrity is the foundation. It is the aim of Schuler people. It is consistent with the words and deeds, and it is always the commitment of Schuler people to our customers.
Schuler is willing to cooperate with every customer and peers to win the best for the development of CNC machinery industry. We will return the society with professional and perfect technical support services.
The company's main products include CNC machining center, industrial CNC milling machine and gantry machining center. , metal band sawing machine, CNC lathe, universal turret milling machine, ordinary milling machine, punching machine and other products, customers are welcome to contact us, we will provide you with quality products and satisfactory service.
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
If any questions pls feel free to contact me
Contact information :
Edwin
Tel:+86 18663288651
