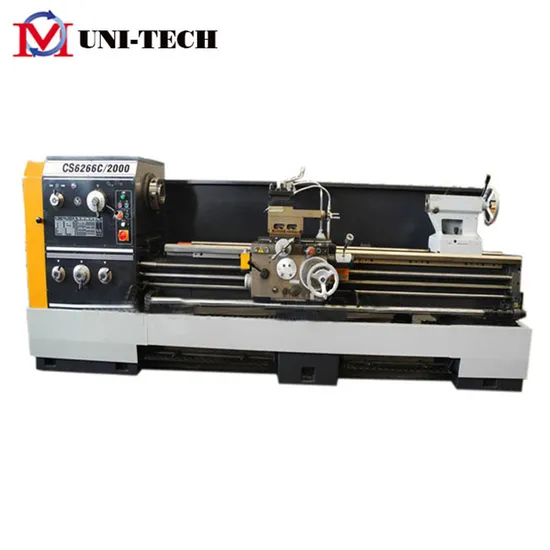

CS6266c Universal Metal High Precision Horizontal Lathe Big Spindle Bore Heavy Duty Manual Gap Bed Turning Lathe Machine
| US$4,000.00-4,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CS6266C
Type
Horizontal Lathe
Processing Accessory
Metal Construction
Guide Rail
Horizontal Guide Rail
Tool Holder
Manual Lathe
Power Source
Electric
Controlling Mode
Manual Lathe
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product
Gap Bed Lathe CS6266
Distance Between Centers
1000/1500/2000/3000 mm
Swing Over Bed
660 mm
Swing Over Carriage
420 mm
Swing Over Gap
870 mm
Bed Width
390mm
Spindle Bore
105 mm
Taper of Spindle Bore
113 mm 1:20
Spindle Nose
D1-8
Motor
7.5kw
Packing Size
2500/3000/3500/4500X1100X1650 mm
Spindle Speed
36-1600rpm
Transport Package
Wood Packing with Fumigated
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
8458190000
Production Capacity
100sets/Month
Product Description
CS6266C Universal Metal Lathe High Precision Horizontal lathe Gap Bed Turning Lathe for SaleCS6266C Lathe machine Feature:
High quality casting body
Precision ball screws
Hardened and ground bed way coated
High precision, high spindle speed with 24 speeds changes.
Ground gear and kinetic-balanced spindle runs smoothly with low noise.
Camlock spindle nose, easy to clamp.
Big thru-bore of spindle to hold bar stock with large diameter.
Big swing over bed suitable for hold special shaped workpiece and dishlike workpiece with large diameter.
High grade casting bed, hardened and precision ground guideways.
Left-handwheel apron and right-handwheel apron are available for users to choose. Each of them equipped with a quick travel device and an easy operated level.
Three-axis sliding mechanism in feed box, giving big feeds and threads ranges. Quick and easy speeds and threading changes.
Tailstock spindle can move at two speeds. Drilling is very easy. The scale on the handwheel indicates the distance the spindle moves.
On user's request, the following accessories are available: Foot brake, taper turning attachment, thread chasing dia (metric or inch), mechanical stop divice quick-change tool post, centralization lubrication device and cross feed quick-release lever.
| Model No. | C6266C |
| Specifications | |
| Distance between centers | 1000/1500/2000/3000 mm |
| Swing over bed | 660 mm |
| Swing over carriage | 420 mm |
| Swing over gap | 870 mm |
| Bed width | 405 mm |
| Spindle bore | 105 mm |
| Taper of spindle bore | 113 mm 1:20 |
| Spindle nose | D1-8 |
| Step of spindle speeds | 12 |
| Range of spindle speeds | 36-1600 rpm |
| Range of cross feeds | 0.027-1.07 mm/r |
| Range of longitudinal feeds | 0.063-2.52 mm/r |
| Range of inch threads | 28-2 T.P.I/25 |
| Range of metric threads | 1-14 mm/22 |
| Range of moduler threads | 0.5-7 mm/18 |
| Range of diametrical threads | 4-56 D.P./24 |
| Rapid feed of cross traverse | 1.9 m/min. |
| Rapid feed of longitudinal traverse | 4.5 m/min. |
| Top slide travel | 145 mm |
| Cross slide travel | 310 mm |
| Max. size of tool (WxH) | 25X25 mm |
| Tailstock quill diameter | 75mm |
| Tailstock quill travel | 150mm |
| Taper of tailstock quill | MT5 |
| Motor | 7.5 kw |
| Packing size | 2500/3000/3500/4500x1100x1650 mm |
| Net weight | 3000/3200/3400/3900 kg |
| Standard Accessories | Optional Accessories |
| 3-jaw chuck (325mm) | Quick change tool post |
| 4-jaw chuck (400mm) | Turning tools |
| Face plate | Leadscrew cover |
| Steady rest | Chuck guard |
| Follow rest | Tool post cover |
| Splash guard | Digital readout system |
| Stand | Taper turning attachment |
| Halogen work lamp | One piece casting stand |
| Toolbox & tools | |
| Coolant system | |
| Foot brake | |
| Five position carriage stop |
if you are interested in our gap bed lathe machine, pls contact us.
TENGZHOU UNI-TECH CO.,LTD
Contact person: Kitty Xu
