Cut Shoe Making Material, Hand Bags, Cutting Machine, Cutting Fabric, Sponge, Foam, Leather, Non Metal Material

Product Description

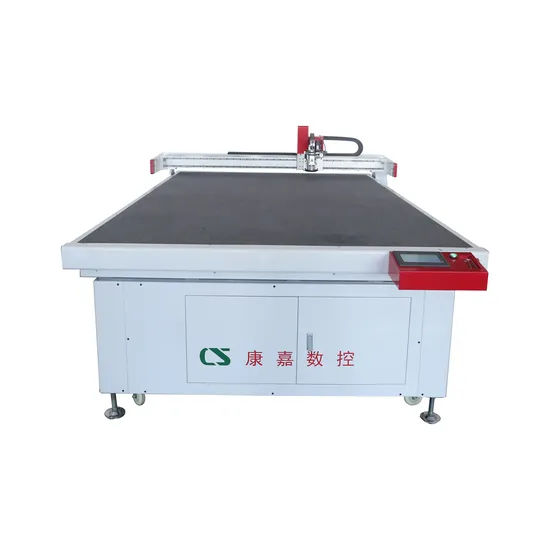

Oscillating Knife Cutting Machie Display
Advantages
1.Labor saving: 3-4 labors saved.
2.Time saving: 3 times faster when compared with manual work.
3. Management saving: Easy to manage.
Quick Details
Applicable Industries: Tool Factory Garment Shops Car floor Mat Factory Condition:New
Automatic Grade :Automatic Place of Origin: Jinan city Shandong province, China
Brand Name:Kang Jia Machine Type: Cutting Machine
Power : 9KW Weight: 850KG
Warranty: 1 year Voltage: 380V/220V
Dimension(L*W*H):3260mm*2120mm*1315mm Cutting speed: 800mm/s-1400mm/s

Model	KJCT-1625 (can be customized)
Voltage	110V/220V/380V±10%,50HZ 60HZ
Working characteristic	Computer operation and cutting machine at the same time,complete data transmission quickly,can be used continuously
Cutting thickness	0.1-50mm
Effective cutting area	2500mm*1600mm
Cutting accuracy	±0.1mm
Cutting materials	Corrugated paper,plastic corrugated sheet,board,ivory board,film,composite materials,leather ,fabric,slab rubber,pear wool,sponge,KT board etc.
Multifunctional head for different cutter	Half knife, full knife, punching roller, V-cutter, milling knife, pneumatic knife, Circular knife (round knife / rotary knife); pin
Location mode	Infrared laser
Material fixed mode	absorption
Transmission interface	Network transmission
Compatible software	Kangjia intelligent software
Control system	LED touch screen
Driving mode	Racking drive
Drive motor	Name ( /Panasonic/Fuji/Yaskawa optional)
Guide rail	Brand :Yin tai/Shang yin
Body structure	Body welding

Cutting Machine Description
Oscillating knife cutting machine can cut lots of types of foam, such as closed cell foam, rubber foam, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, EVA foam etc. It also used for cutting leather rubber sponge cloth and other composite materials.
Certificate Of Honor
Exhibition show
Our Company Service
Pre-Sales Service
1:View Factory Support
2:Free Training Support
3:Sample Testing Support
4:24 Hours Consultation Service
After-Sales Service
1:Training how to install the cutting machine and how to use the cutting machine
2:1 year quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3:Our staff can be send your factory or company to install the machine (except the traffic costs)
FAQ
1. How do I choose the right machine for me?
You can tell us your working material, detail work by picture or video so that we can
judge whether our machine can meet your need or not. Then we can give you the
best model depends on our experience.
2. Is it easy to operate?
Yes, it's very convenient. It supports multiple formats. In addition, our professional
technical support personnel. At any time
3. Is the machine safe to operate?
Our machines are equipped with multiple protection measures to ensure that the operator's
4. What's the guarantee, in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality problem under "normal use". .
5. How's the payment?
TT,PAYPAL,Western Union(WU),and so on
