High yield corn vibrating screen for sale
Product Details
Product Details
Product Description
Product DescriptionProduct use This machine is suitable for the initial cleaning of raw grains in grain depots and seed companies, the initial cleaning and cleaning of raw materials in flour milling, rice milling, feed, chemical, food processing and other industries. By replacing the sieve plates of different specifications, many varieties of materials such as wheat, corn, rice, and oil can be cleaned.

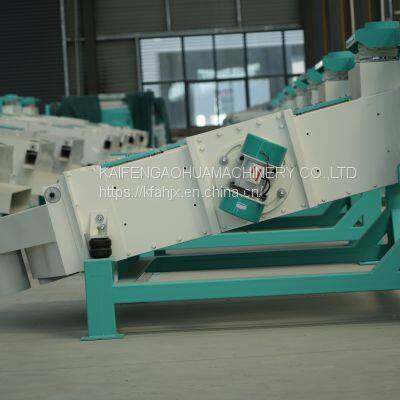

Product Features Small miscellaneous effect is good. The screen body and the frame are supported by four rubber springs, which can effectively prevent the vibration from transmitting to the ground. The screen grid is easy to install and remove. The vibration motor directly drives the screen body, and the failure rate is small. There are fixed and mobile types for supply. Optional.
| Model DATA | Screen size Wide * length (cm) | Handling wheat output (T/h) | leaning angle of screen ° | Shock direction Angle ° | amplitude （mm） | motive power （kw） | weight （kg） | motor speed (R/min) | outline dimension (Long * width * height) |
| preliminary cleaning | preliminary cleaning | preliminary cleaning | |||||||
| TQLZ100x200 | 100x200 | 30 | 12 | 25 | 4-5.5 | 2x0.37 | 900 | 960 | 2335x1450x1550 |
| TQLZ125x200 | 125x200 | 35 | 12 | 25 | 4-5.5 | 2x0.37 | 1050 | 960 | 2400x1890x1900 |
| TQLZ150x200 | 150x200 | 45 | 12 | 25 | 4~5.5 | 2x0.75 | 1250 | 960 | 2450x1700x1650 |
| TQLZ180x200 | 180x200 | 55 | 12 | 25 | 4-5.5 | 2x1.1 | 1050 | 960 | 2450x2460x1700 |
| TQLZ180x270 | 180x270 | 80 | 15 | 25 | 4.5-5.5 | 2x1.5 | 1400 | 960 | 3100x2460x1900 |
| TQLZ200X250 | 200x250 | 120 | 15 | 25 | 4.5-5.5 | 2x1.5 | 2200 | 960 | 2850x2660x2050 |
| TQLZ300X250 | 300x250 | 140 | 15 | 25 | 4.5~5.5 | 2x1.5 | 2800 | 960 | 3030x3580x2360 |
