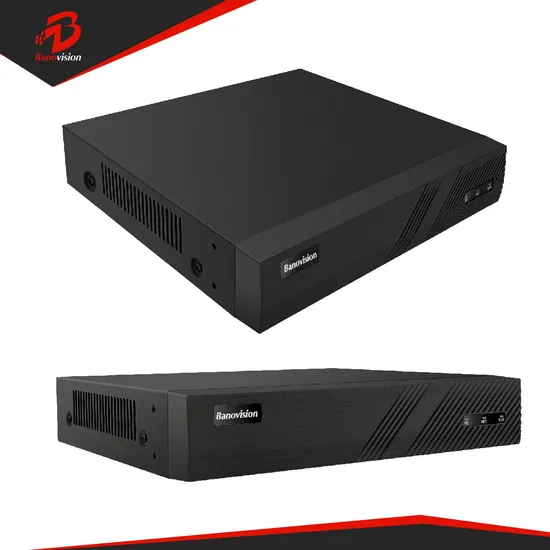

8MP 8CH Xvr Digital Video Standalone Recorder CCTV Camera DVR System
| US$10.00-68.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
BA-1D3108-Q3
Compressed Format
H.265
Operating System
Linux
Application
Commercial DVR
Interface Type
BNC/VGA/HDIM
Video Input/Output
Input: 4CH BNC/ Output: 1CH VGA, 1CH HDMI
Audio Input/Output
Input: 8CH RCA/ Output: 1CH RCA
Remote Control
With Remote Control
Special
Support Audio Over Coaxial Cable(Only for Tvi Came
Xvr
Support Tvi, Ahd, Cvi, CVBS, IP Cameras with Adapt
Recording Frame Rate
8MP/5MP/4MP/2MP
Harddisk
1SATA(up to 8tb for Each HDD)
Transport Package
Neutral Packing
Trademark
Banovision or OEM
Origin
China
HS Code
8521909090
Production Capacity
10000PCS/Month
Product Description
Features:
| * Support H.265/H.264 video formats | ||
| * Support audio over coaxial cable(only for TVI cameras) | ||
| * Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access | ||
| * 8-channel BNC input | ||
| * Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160) | ||
| * Long transmission distance over coaxial cable | ||
| * Support mainstream cameras of ONVIF and RTSP protocols |
Specification:
| Model | BA-1D3108-Q3 | |
| Video/Audio Input | ||
| Analog Video Input | 8-ch, BNC | |
| IP Video Input | 4-ch(only IP up to 12ch), each channel up to 8MP | |
| Supported Analog Camera Types | Support AHD input: | |
| 8MP@12fps | ||
| 5MP@20fps | ||
| 4MP@30fps | ||
| 1080P@30fps | ||
| 720P@30fps | ||
| Support TVI input: | ||
| 8MP@15fps | ||
| 5MP@20fps | ||
| 4MP@30fps | ||
| 1080P@30fps | ||
| 720P@30fps | ||
| Support CVI input: | ||
| 8MP@15fps | ||
| 5MP@25fps | ||
| 1080P@30fps | ||
| 720P@30fps | ||
| Support CVBS input | ||
| Audio Input | 1-ch, RCA | |
| Audio Compression | G.711U | |
| Video/Audio Output | ||
| CVBS Output | 1-ch, RCA | |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| HDMI Output | 3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | HD:8-ch | |
| Live view display | HDMI/VGA: 1/4/6/8/9/16 | |
| Two-way Audio | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 40Mbps (up to 56Mbps after all analog camera conversion) | |
| Outgoing Bandwidth | 64Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |
| Browser | IE(IE10/11) for Windows | |
| Firefox (version 52.0 and above) for Windows | ||
| Chrome(version 45 and above) for Windows | ||
| Edge(version 79 and above) for Windows | ||
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite /1080P/720P/CIF | |
| Recording Frame Rate | Main stream: | Sub stream: |
| 8MP Lite@8fps | D1@8fps | |
| 5MP Lite@12fps | D1@12fps | |
| 4MP Lite@15fps | D1@15fps | |
| 1080P@15fps | D1@15fps | |
| 720P@30fps | D1@30fps | |
| Audio Sample Rate | 8KHz,16 bit per channel | |
| Audio Bit Rate | 64Kbps per channel | |
| Decoding | ||
| Capability | Analog: 8 x 8MP Lite@8, 8x 5MP Lite@12, 8x 4MP Lite@15, 8x 1080P@15 | |
| IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30 | ||
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 8TB for each HDD | |
| (The maximum HDD capacity varies with environment temperature) | ||
| General Alarm | ||
| General Alarm | Motion detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel: 2 x USB2.0 | |
| RS485 | 1 | |
| Alarm In | 4-CH | |
| Alarm Out | 1-CH | |
| General | ||
| Power Supply | 12V DC | |
| Power Consumption: ≤ 10 W( without HDD ) | ||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Dimensions(W×D×H) | 260mm ×226mm× 47mm (10.2" × 8.9"×1.8") | |
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) | |
Dimension:
Rear Panel:
SOME PART of Software:
