Robotic Circular Saw Blade Grinding Machine with Auto Loader

Product Description

AFZ400 CNC FACE Angle Saw Blade Sharpening Machine with Auto Loader High-level productivity & precision grinding machine for carbide tools.

Advantages of saw blade sharpener • More precision- grinding precision: <0.025mm,be impressed by the higher accuracy. • More efficiency- experienced productivity on a higher level • More user comfort- simplify your work • More flexibility-for precision in any requirement

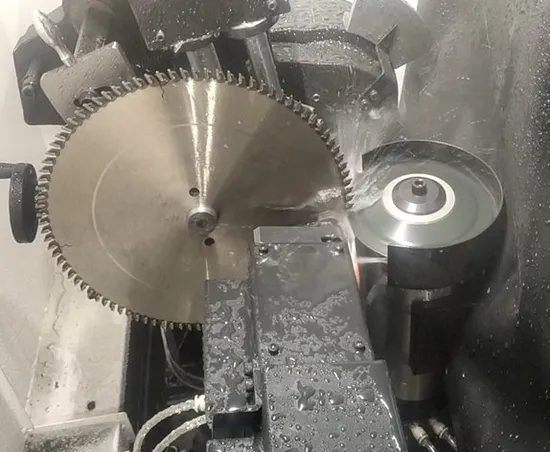

• More Function- grinding FACE of saw blade
Features
1. Professional in grinding saw blades suitable for aluminum alloy, panel furniture,plywood, MDF, multiple blade saw, high-end power tools.
2. Machine tool base is made of welded steel plates ,and the main parts are cast iron, which are treated by high temperature tempering and vibration aging to ensure that no deformation occurs during long-term use.
3. With 4-axis servo and 3-axis stepper. Some parts adopt digital signals control and there is no analog signal.
4. Feed mode, feed amount, feed speed, feed speed, grinding speed, radial clearance angle and tangential clearance angle are all digital set through user interface; Processed product specifications can be stored as the production number, which can be directly invoked in the next processing. A machine can store up to 100 sets of data.
5. Number of hanging pieces: approx 60 pieces (2mm blade)
Time of changing saw blades: approx 12 seconds (140-305mm);approx 24 seconds (320-405mm)
CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.
3-D Graphics Grinding Machine
Technical Premeter

Saw diameter	140~400mm (optional)
Bore diameter	15.88~50mm(optional)
Plate thickness	<8mm
Hook angle	-10°~+30°
Face angle	-25°~+25°
Pitch	<60mm
Tip length	<20mm
Wheel power	0.75KW
Wheel size	150mm*32mm*16mm
Wheel speed	4800RPM
Wheel linear velocity	38m/s
Grinding speed	2mm~10mm/s
Processing efficiency	4~16 s/tip
Grinding accuracy	<0.02mm
Input voltage	380V 50Hz(60Hz)
Power	Approx 3.1KW
Dimension	2800mmX1400mmX1900mm
Weight	1900kg

Configuration

Ball Screw	IF(Germany)
Roller Guide	HIWIN(Taiwan)
Pneumatic Parts	SMC(Japan)
Servo Motor	Inovance
PLC	Inovance ARM600
Harmonic Drive	Inovance

FAQ 1. How to chooce best saw blade grinding machine? - Best grinding machine process tools with higher precision & long service life. 2. How is the performance of TORSEL saw blade grinding machine? - TORSEL saw blade grinding machine process tool with excellent precision <0.025mm,the service life is upto 7-15 years. 3. Whats your cooperation companys?
