32mm Metal Drilling Rig Z3032 Radial Drilling Machine

32mm Metal Drilling Rig Z3032 Radial Drilling Machine

US$2,000.00-2,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3032
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
Cast Iron 32 Steel 32
Automatic Grade
Automatic
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Column Diameter
200mm
Horizontal Moving Distance of Spindle Bo
710
Spindle Travel mm
120
Transport Package
Plywood
Specification
1800mmx810mmx2200mm
Trademark
Schuler
Origin
Shandong China
HS Code
8459290000
Production Capacity
500piecse/Year

Product Description

32mm Metal Drilling Rig Z3032 Radial Drilling Machine

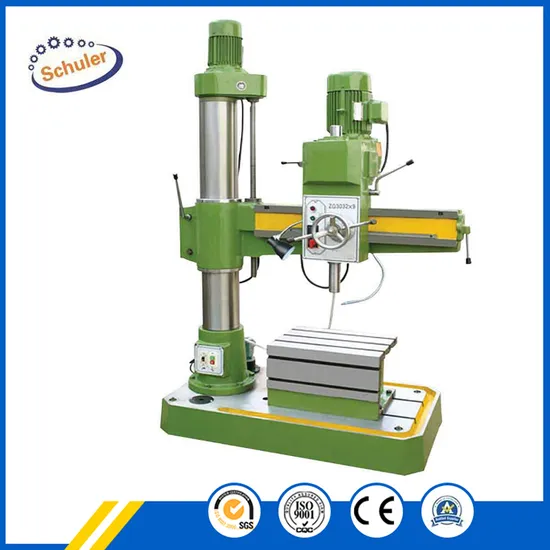

Product picture:
Drilling Machine Features:
The radial drilling machine model Z3032,Z3040,Z3050, Z3063, Z3080 is a new series with diversified functions of product which has been designed and accomplished referring to the intermational standards (ISO) CE in the recent years. In this machine, hydraulic preselection speed and feed change mechanisms are adopted.
The spindle head, radial arm and columns are clamped by the hydraulic clamping mechanisms, and the forward, reverse, stop (braking), as well as the setting of spindle in neutral position are all controlled by a single-lever, the machine has the characteristic features of perfect performance, safe, reliable and easy operation, convenient maintenance, high accuracy, ample rigidity and long service life. It is used for drilling, counter boring, spot facing, reaming, tapping and boring. It is the machine widely used in every department of mechanical machining.
Drilling Machine Technical Parameters:
Model Unit Z3032×10
Max. Drilling diameter mm Steel Φ32 iron Φ32
Tensile strength Mpa 500-600
Column diameter mm 200
Distance between spindle centerline and column mm 200-910
Horizontal moving distance of spindle box mm 710
Distance from Spindle nose to base surface mm 330-1060
Rocker arm lift distance mm 730
Spindle travel mm 120
Spindle taper Morse 4
Spindle speeds R/min 108 162 262 398 665 1000
Spindle feeder Mm/r 0.10 0.16 0.25
Maximum feed resistance of Spindle allows N 5300
Rocker arm lifting speed M/min 1.21
Swing angle of rocker arm ° + 180
Spindle motor power kw 1.5/2.2
Liftting motor kw 0.55
Coolant power kw 0.04
Net weight kg 1080
Machine size mm 1400×660×2060

Drilling Machine Assembly workshop:
Drilling Machine In the workshaop:

Drilling Machine Package delivery:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
If any questions pls feel free to contact me
