Basic Info.
Output Signal Type
Digital Type
Production Process
Normal Wirewound
Measuring Medium
Temperature
Wire System
2 Wire ,3 Wire
Probe Size
6*50mm/6*30mm/7*25mm/8*25mm(Custom-Made)
Accuracy
+/- 0.5ºC Ds18b20 Temperature Sensor
Cable Color
Red/Black/Green/White/Gray
Wire Material
Platinum Rhodium
Transport Package
Carbon Box
Specification
can be customized
Origin
China Jiangsu Province
Production Capacity
10000000PCS/Year

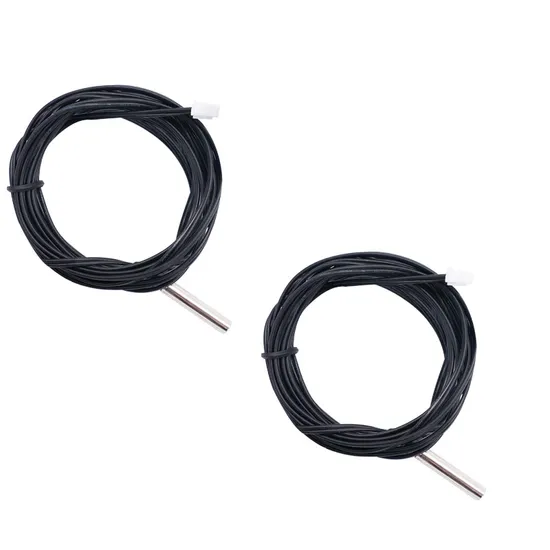

Product Description
Product Description
Probe material | SS304 PVC |
Cable material | Silicone/PVC |
Probe size | 6*30mm /6*50mm/or customzied |
Waterproof | IP65/IP68 |
Product characteristics:
1. waterproof design
2. High sensitivity, small temperature delay
3. No external components, the unique single-bus interface
Specification:
Operating voltage: 3.0 ~ 5.5V
Temperature range: -55 ºC ~ + 125 ºC
Test accuracy: + 0.5 ºC (within the range of -10 ºC ~ + 85 ºC in)
Cable length: 100 cm or customized
Output leads: red (VCC), yellow (DATA), black (GND)
Company Profile
Taizhou Best electric heating appliance Co., Ltd. was established in 2 0 1 4 year. It is a
comprehensive company integrating production, sales and technical service. the factory covers an
area of 5000m2,has nearly 100+employees.have obtained ISO9001, CQC,CE,ROHS certifications.
Main products : cartridge heater,Tubular heater, Flexible heater, cartridge heater,silicone heater
thermocouple, heating element, and other heating products. The factory introduced advanced
automatic control system and online quality,inspection system to ensure the stability and reliability
of product quality
